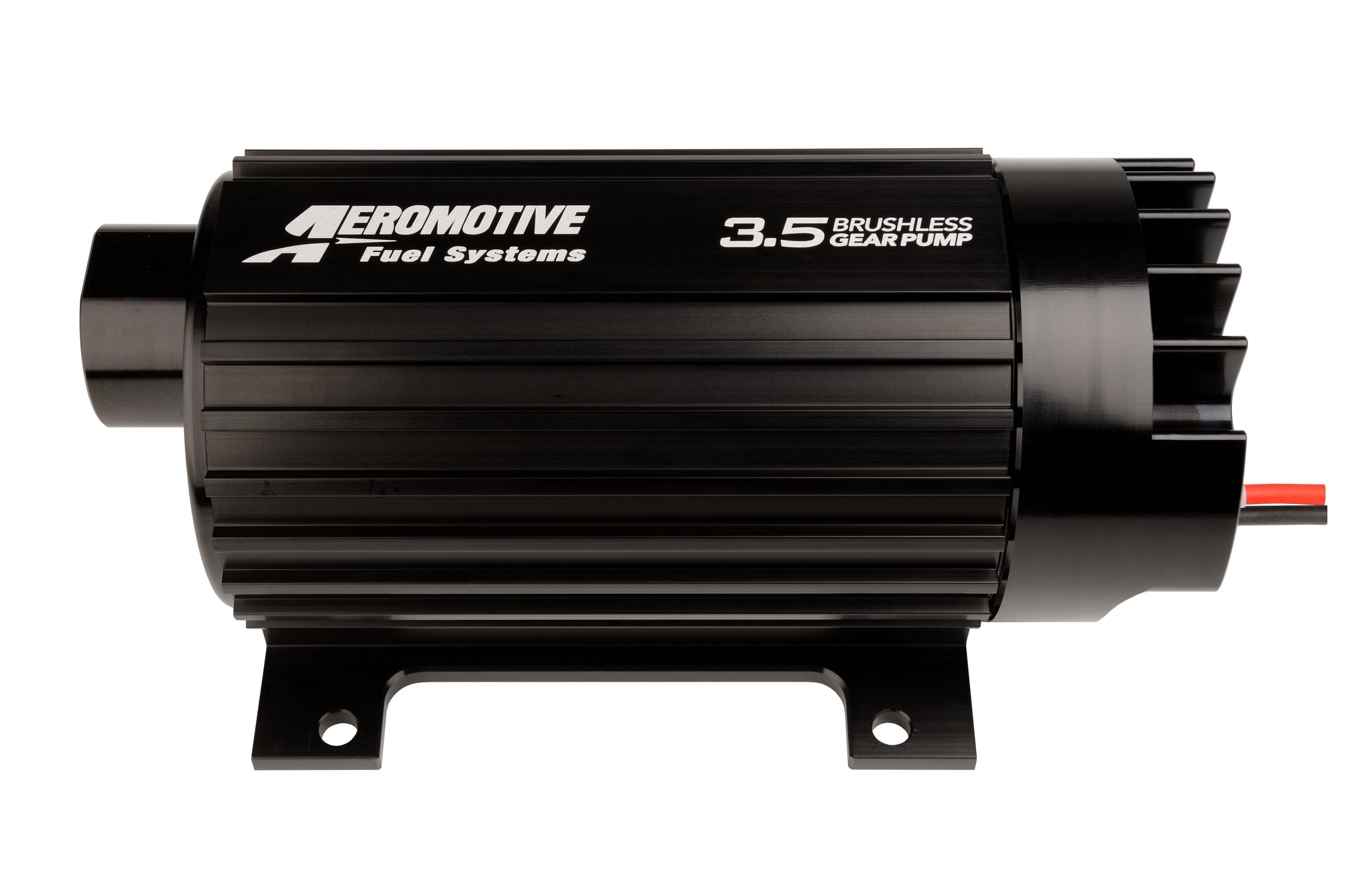

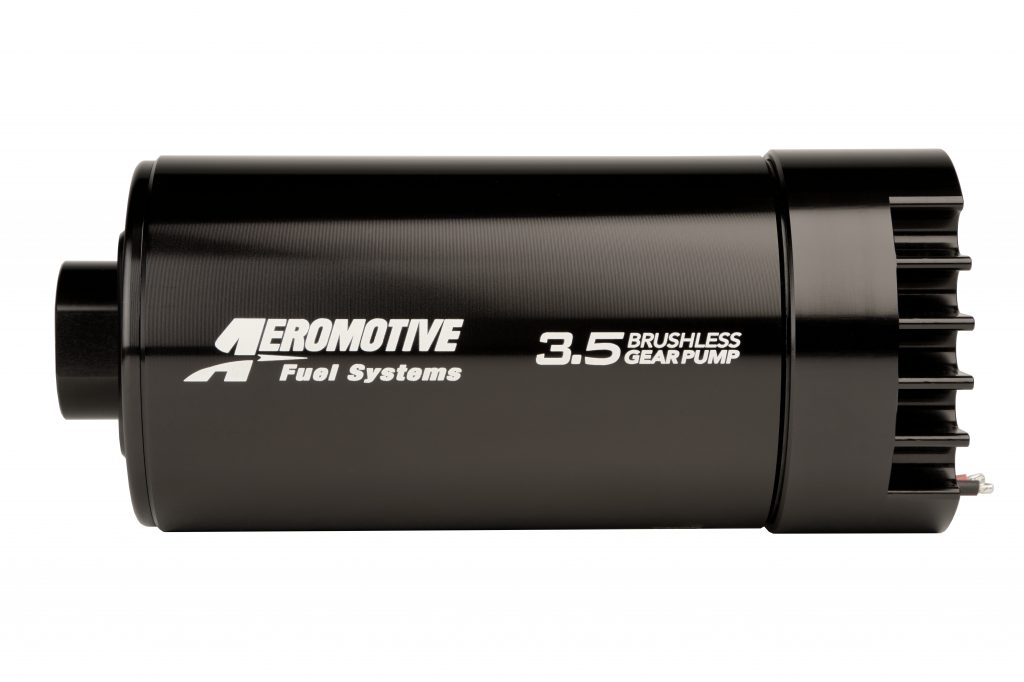

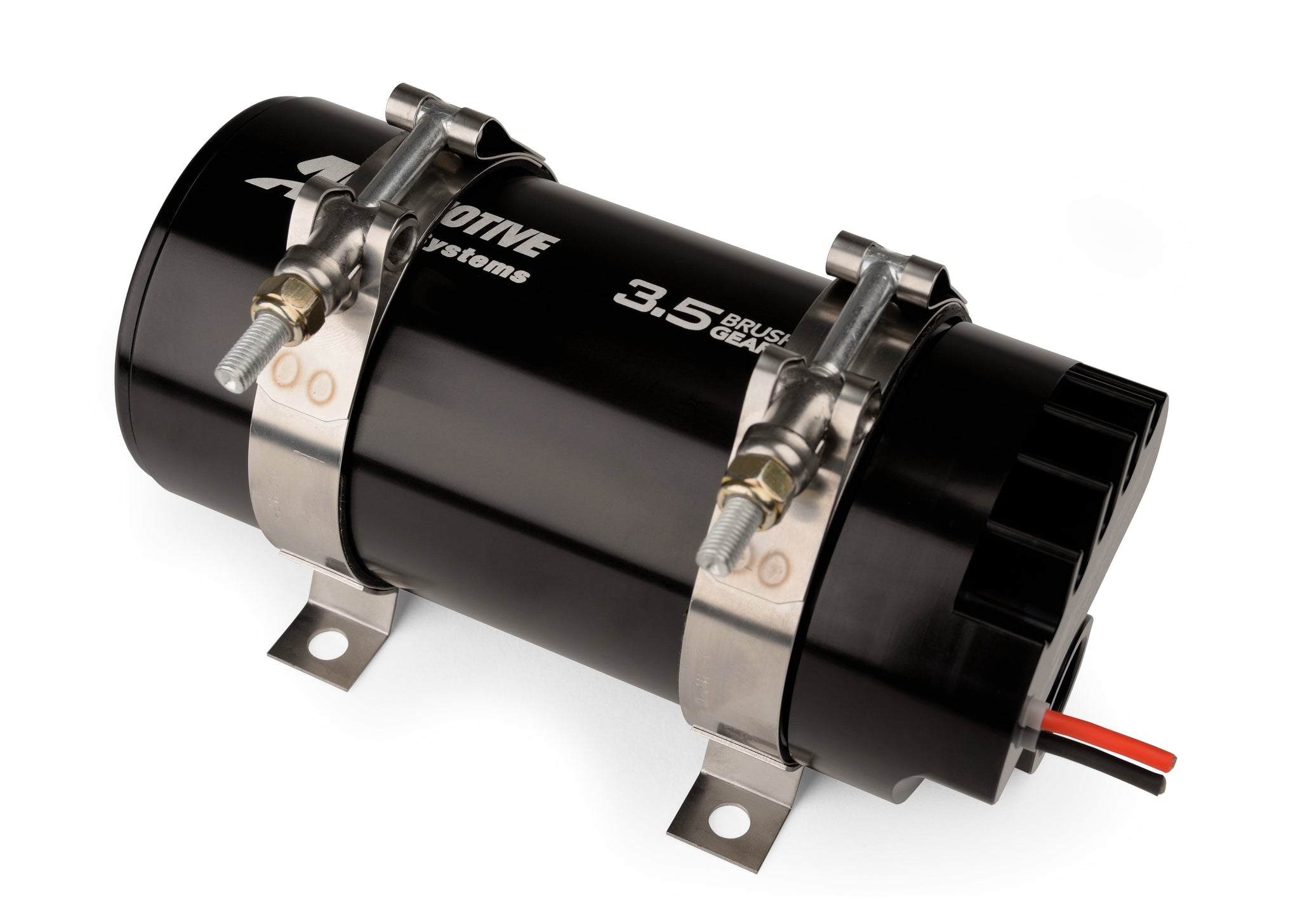

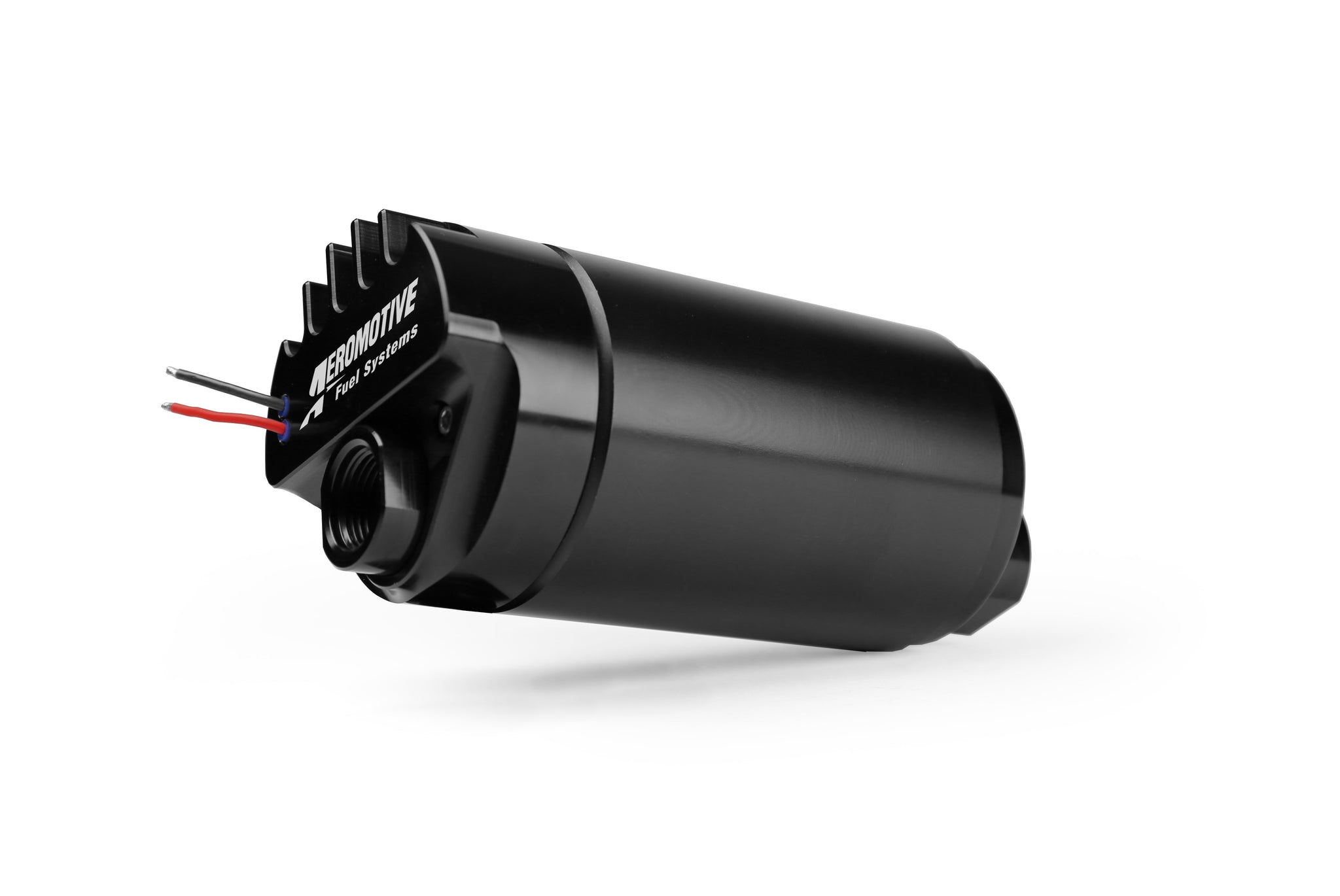

Aeromotive Brushless Spur Gear Fuel Pump w/TVS Controller - In-Line - 3.5gpm - 11195

3.5 Brushless Gear Pump
Pro-Series Performance Plus Advanced Technology

• The Pro-Series performance you expect and more:

  • Fuel injected engines: GAS
    up to 2400 FWHP - naturally aspirated
    up to 1800 FWHP - forced air induction
  • Carbureted engines: GAS
    Up to 2600 FWHP - naturally aspirated
    Up to 2000 FWHP - forced air induction
  • Fuel injected engines: E85
    up to 1680 FWHP – naturally aspirated
    up to 1260 FWHP – forced air induction
  • Carbureted engines: E85
    Up to 1820 FWHP – naturally aspirated
    Up to 1400 FWHP – forced air induction
  • Fuel injected engines: METHANOL
    up to 840 FWHP – naturally aspirated
    up to 630 FWHP – forced air induction
  • Carbureted engines: METHANOL
    Up to 910 FWHP – naturally aspirated
    Up to 700 FWHP – forced air induction
• Lighter than the traditional Pro-Series pump.

• Reduced current draw at higher, EFI pressures.

• Extended service life in methanol and ethanol.

• New integral spur-gear pumping mechanism.

• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

• ORB-12 inlet and ORB-10 outlet ports.

• Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

• Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
