Aeromotive Adjustable Regulator - 35-75PSI - .313 Valve - (2) -08 Inlets/-08 Return - 13305

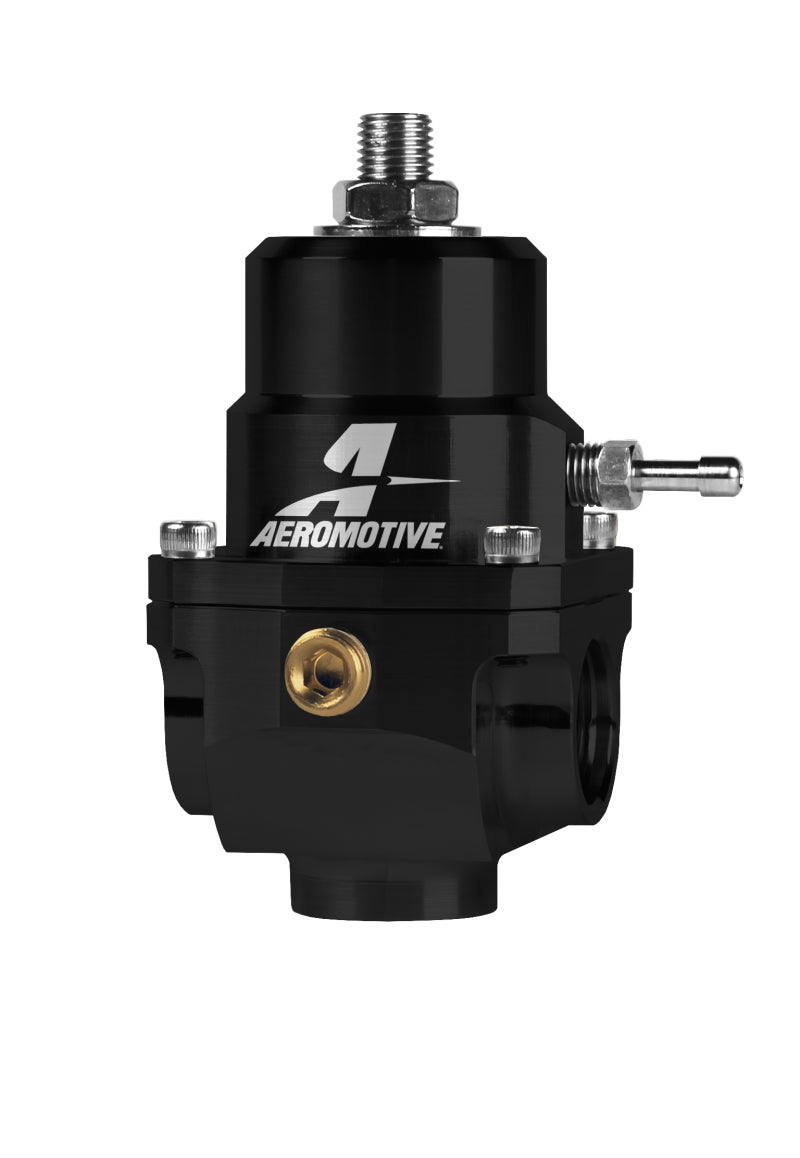

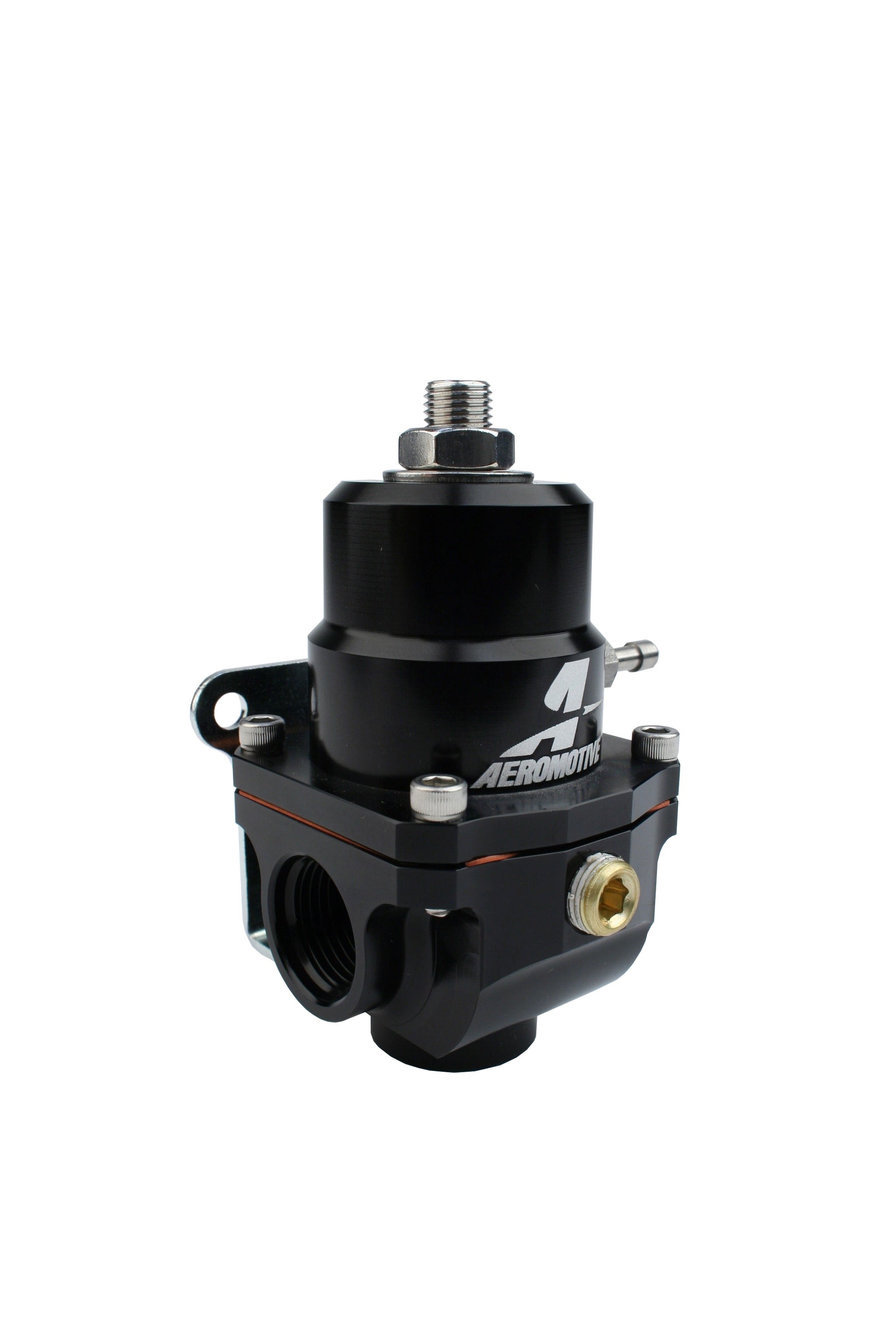

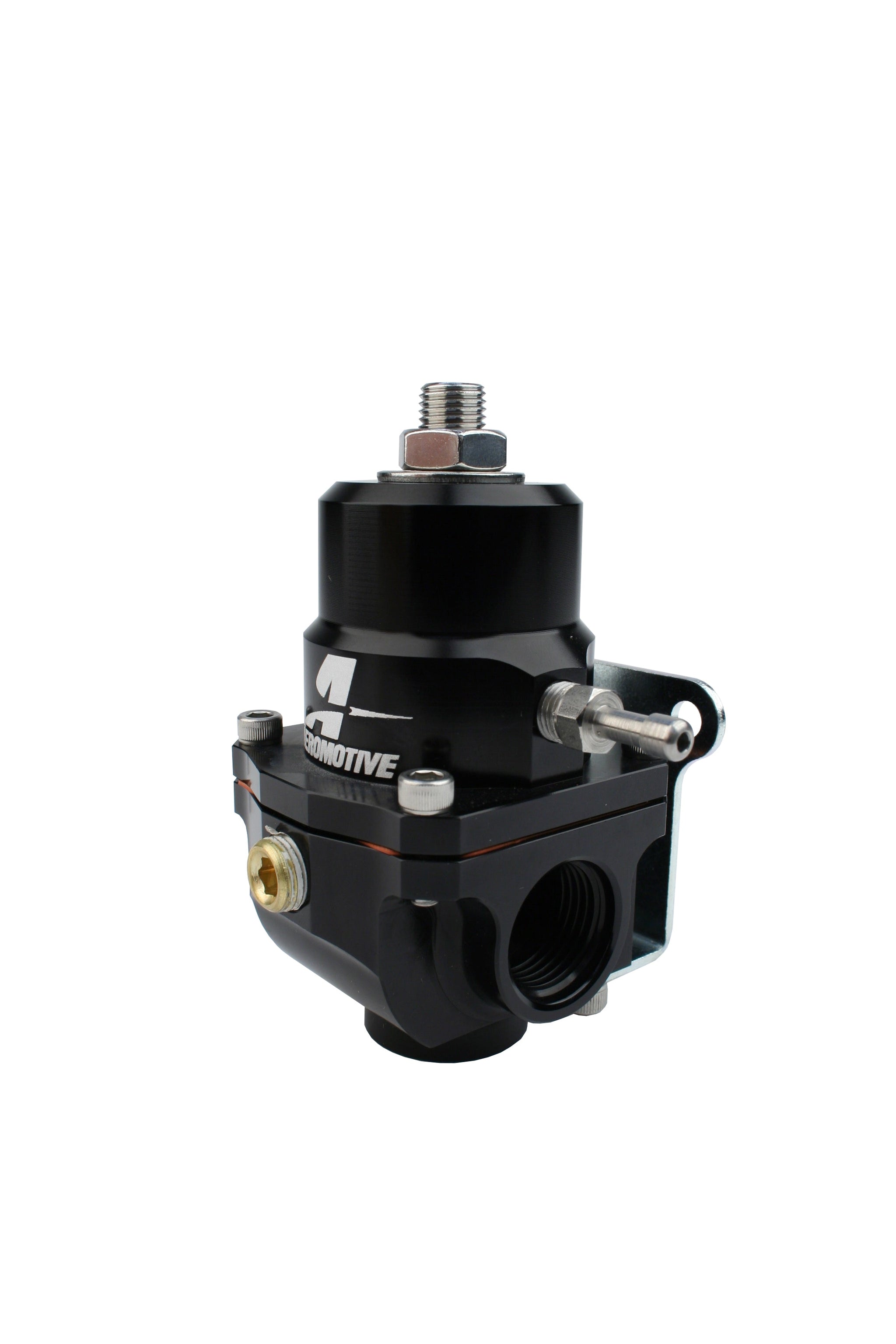

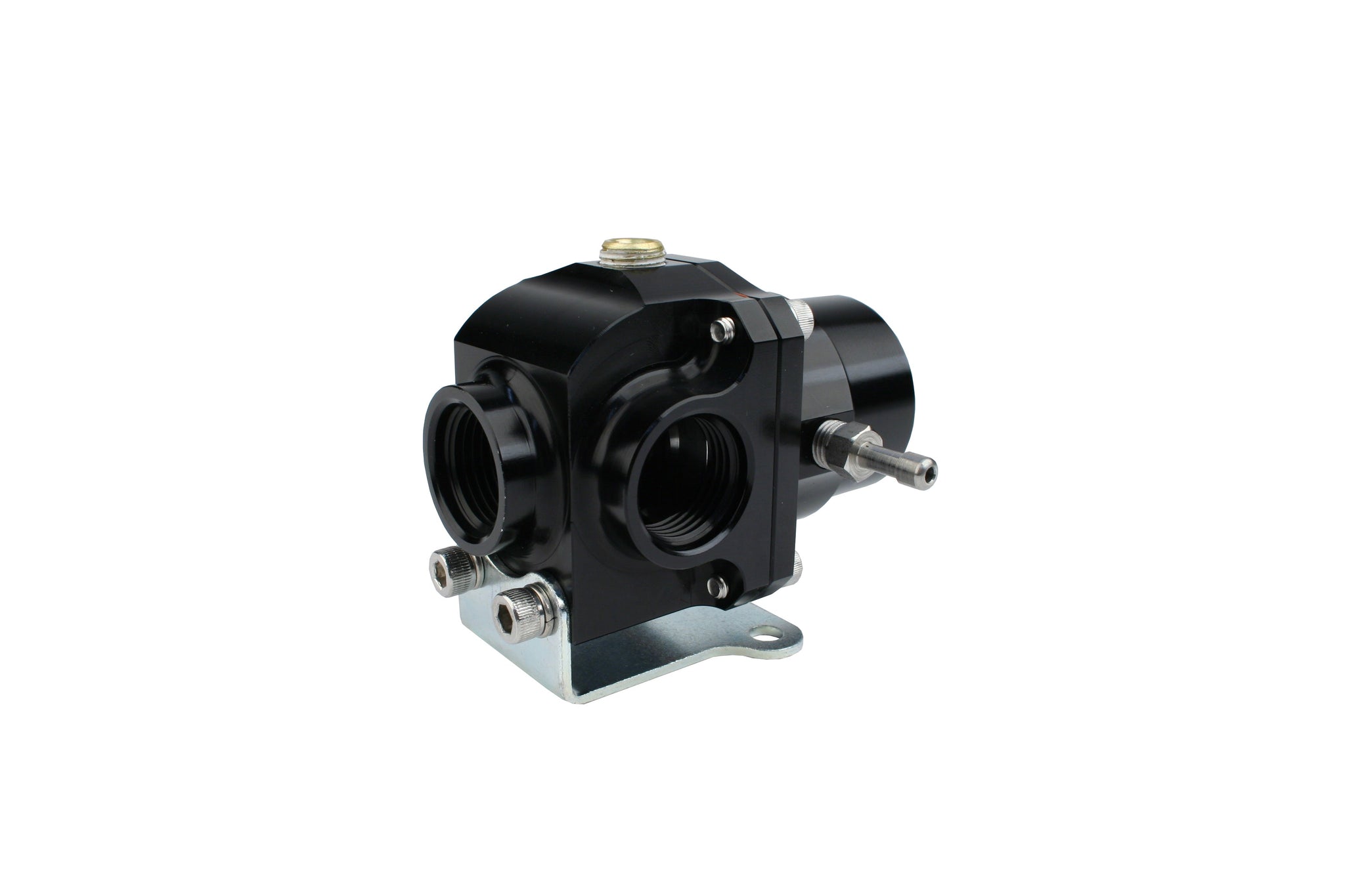

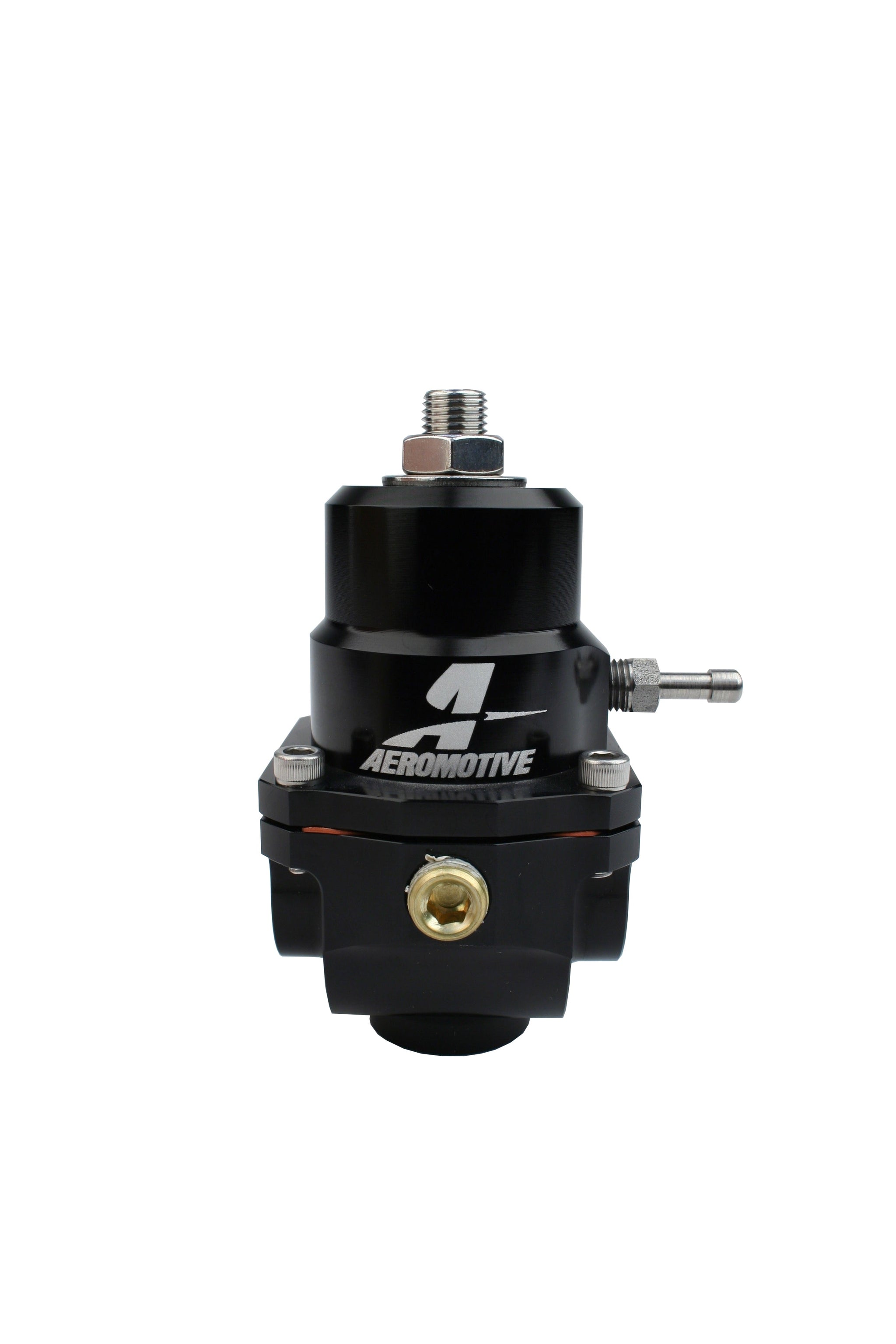

P/N 13305 X1 EFI Pro Return Style Regulator
EFI return style Regulator for Return Style Systems

• Base fuel pressure adjustable from 35-75 PSI.

• Vacuum/Boost reference capability.

• 1:1 rising rate for forced induction engines.

• Gasoline, ethanol, alcohol and diesel compatible.
• 2 - ORB -08 inlet/outlet ports on the sides.

• 1 - ORB-08 return port on the bottom port.

• 1 - 1/8" NPT Gauge Port with plug.

• 1/16" NPT Boost Port with 5/32" hose barb.

• Compatible with X1 EFI Conversion kit.

• Compatible with X1 Carb Conversion kit.

• 0.313" return style with matching spring and poppet.

• Handles up to 250 GPH with AN-08 return line.

• Mounting bracket included (not shown).

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring

P/N 13014 150 GPH 0.313" Carb Conversion Kit
P/N 13013 150 GPH 0.188" EFI Conversion Kit
P/N 13015 250 GPH 0.313" EFI Service Kit
