Aeromotive 86-98.5 Ford Mustang 340lph Fuel Pump & Hanger - 18638

Fox Body Mustang 83-97 Stealth 340, 450 or 525lph Fuel Pump & Hanger
Assembly Fits all 83-97 Mustang OEM - EFI Fuel Tanks

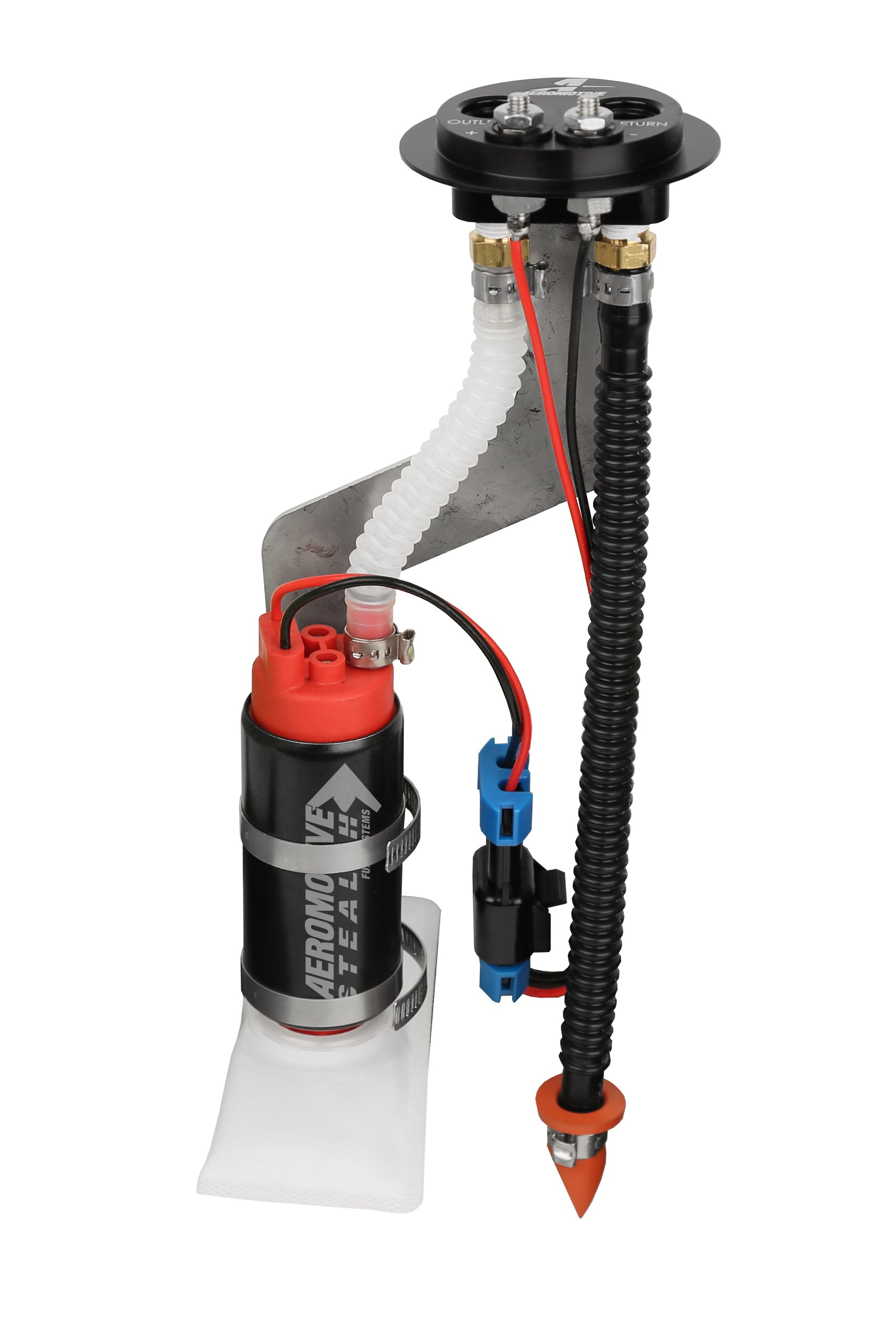

Billet Fuel Pump Hanger and High Flow 340, 450, or 525lph Stealth Pump assembly drops into stock tank.  Supports high-flow, high horsepower combinations in stock 83-97 Mustang EFI fuel tanks.  Eliminates fuel starvation and return aeration common to the factory Mustang hanger.

• CNC machined billet aluminum hat fits stock opening, with ORB-06 outlet and return ports.

• Supports AN-06 or AN-08 fuel lines with P/N 15606 or P/N 15649 port fittings respectively.

• 6065 aluminum hat is bright dip anodized black and laser engraved for good looks and durability.

• Stainless Steel pump mounting bracket.

• OEM grade convoluted tubing on supply and return for durability and high flow.

• Extended, high flow return with anti-siphon eliminates aeration and cavitation.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

340 LPH (Part #18638)

Fuel Injected Engines:

• Gasoline: up to 850 HP – naturally aspirated.

• Gasoline: up to 700 HP – forced air induction.

• E85: up to 595 HP – naturally aspirated.

• E85: up to 490 HP – forced air induction.

Carbureted Engines:

• Gasoline: up to 1000 HP – naturally aspirated.

• Gasoline: up to 850 HP – forced air induction.

• E85: up to 700 HP – naturally aspirated.

• E85: up to 595 HP – forced air induction.

450 LPH (Part #19139)

Fuel Injected Engines:

• Gasoline: up to 1,100 HP – naturally aspirated.

• Gasoline: up to 800 HP – forced air induction.

• E85: up to 750 HP – naturally aspirated.

• E85: up to 550 HP – forced air induction.

Carbureted Engines:

• Gasoline: up to 1,300 HP – naturally aspirated.

• Gasoline: up to 950 HP – forced air induction.

• E85: up to 900 HP – naturally aspirated.

• E85: up to 700 HP – forced air induction.

525 LPH (Part #19140)

Fuel Injected Engines:

• Gasoline: up to 1,200 HP – naturally aspirated.

• Gasoline: up to 900 HP – forced air induction.

• E85: up to 810 HP – naturally aspirated.

• E85: up to 600 HP – forced air induction.

Carbureted Engines:

• Gasoline: up to 1,400 HP – naturally aspirated.

• Gasoline: up to 1,100 HP – forced air induction.

• E85: up to 950 HP – naturally aspirated.

• E85: up to 740 HP – forced air induction.
