McLeod Street Twin Aluminum Ford 1964-Up 260 To 351 Eng 1-1/16X10 157 Includes 28oz & 50oz CW - 6330103

SKU: SKU: MLR6330103

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

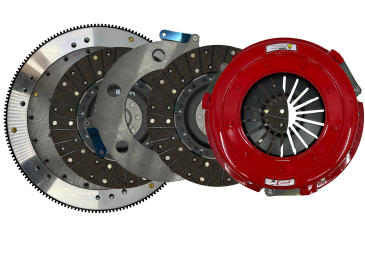

Original Street Twin: Aluminum: Ford 1963-95 SBF 289/302/351: 1-1/16 x 10 Spline: 157T

Original Street Twin - Rated up to 1200 HP, this clutch system is perfect for high horsepower street cars applications. Designed for vehicles with superchargers, turbochargers, NOS or big cubic inch engines. Available with either organic or ceramic discs. Performance aluminum or steel flywheel included with the Original Street Twin system.

  • Counter Weight Kit if Required 563333 (sold separately)
  • • Street Twin. • Street Friendly. • Ceramic or Organic Discs. • Strap Drive. • Flywheel Included.

Specifications

Disc Style Full face
Hub Style Solid
Clutch Disc Quantity 2
Pressure Plate Style Diaphragm
Counterweight Assist No
Alignment Tool Included Yes
Hardware Included Yes
Clutch Usage Performance
Pilot Bushing Included No
Throwout Bearing Included No
Flywheel Included Yes
Flywheel Material Billet aluminum
Ring Gear Tooth Quantity 157-tooth
Engine Balance Internal
Crankshaft to Flywheel Bolt Quantity 6-bolt
Quantity Sold as a kit.
Counter Weight Kit if Required 563333 (sold separately)
Horsepower Rating 1200
Disc Diameter (in.) 10.500
Input Shaft Diameter (in.) 1.063
Input Spline Quantity 10
Disc Material Organic
