SKU: SKU: CCA506-1

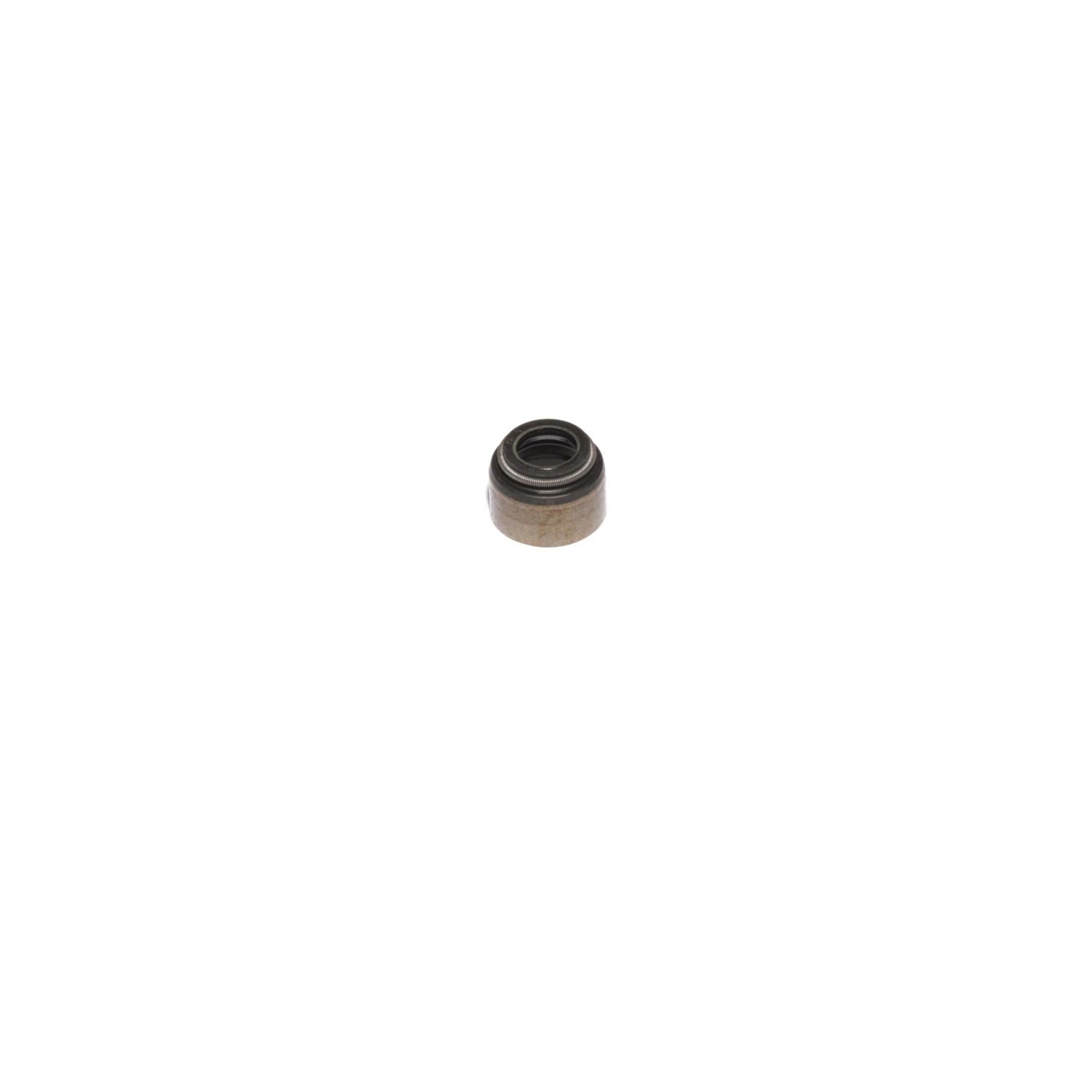

1 Black Viton Valve Seal for .494" Guide Size, 11/32" Valve Stem
Application: Engines w/ 0.494" OD Valve Guides and 11/32" Valve Stems
Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 506 seal has a .610" OD and fits applications with 11/32" valves and .494" OD guides.
COMP Cams offers a complete line of valve stem Seals, from the stock GM "O-Ring" to the positive-stop PTFE Seal. These Seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" Seals use the standard retainer and oil splash shield. The umbrella Seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE Seal is used. We also have a smaller diameter Viton Seal available for triple spring Applications.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
