SKU: SKU: FOX883-06-204

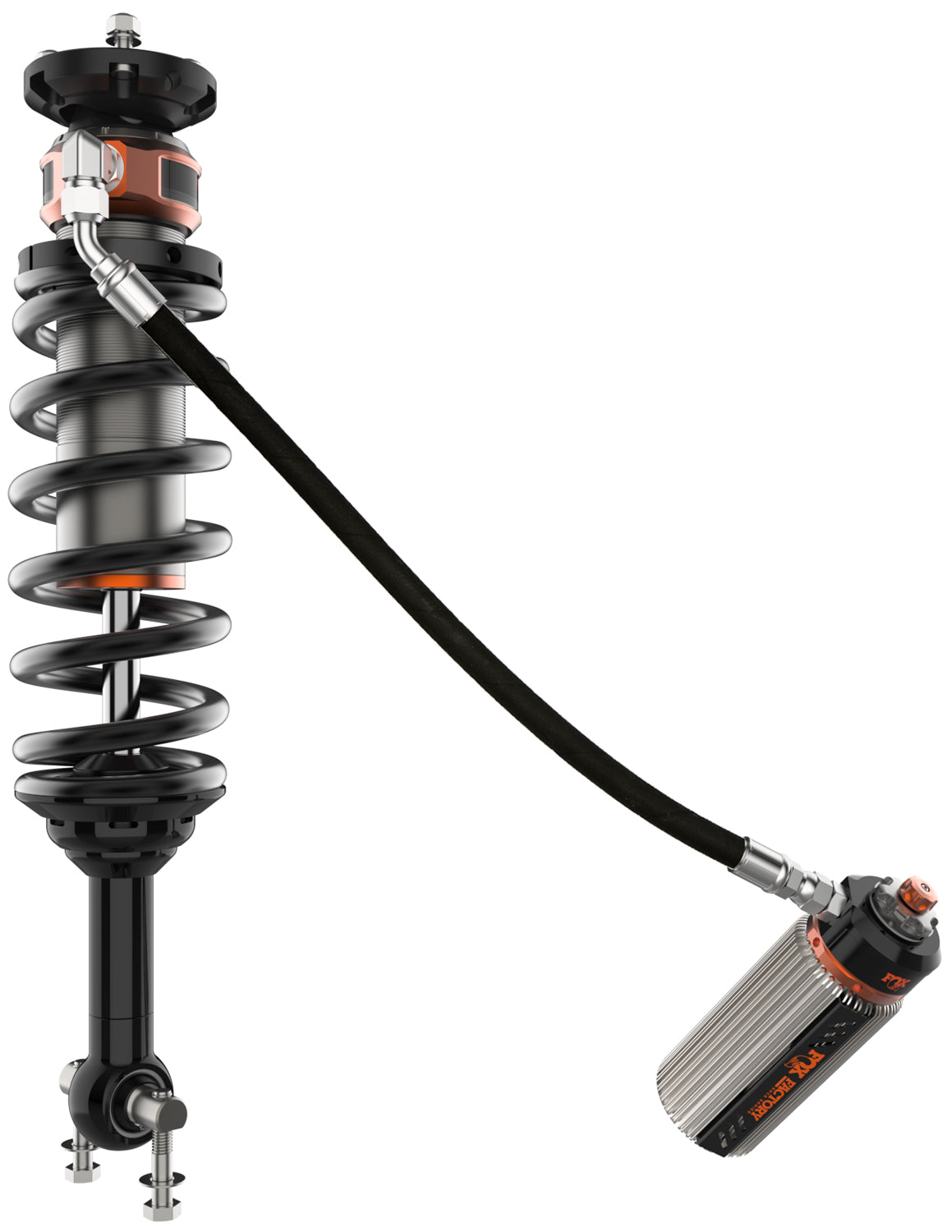

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV._x000D_ _x000D_ 2 Door | Without Sasquatch Package - 4.5" Lift;_x000D_ 4 Door | Without Sasquatch Package - 4" Lift;_x000D_ 2 Door | With Sasquatch Package - 3.5" Lift;_x000D_ 4 Door | With Sasquatch Package - 3" Lift
Application specific valving to maximize performance
Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.
Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.
Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
| Type | Coil-Over Internal Bypass |
| Bottom Mount (p/n) | 213-63-012 |
| Travel (in) | 5.42 IN |
| Series | Factory Race |
| Extended Length (in) | 23.44 IN |
| Compressed Length (in) | 17.95 IN |
| Body Material | Aluminum |
| Bottom Mount | Bar Pin |
| Reservoir Type | Remote |
| Top Mount | OEM |
| Body Diameter (in) | 3.0 |
