GREDDY PERFORMANCE PRODUCTS

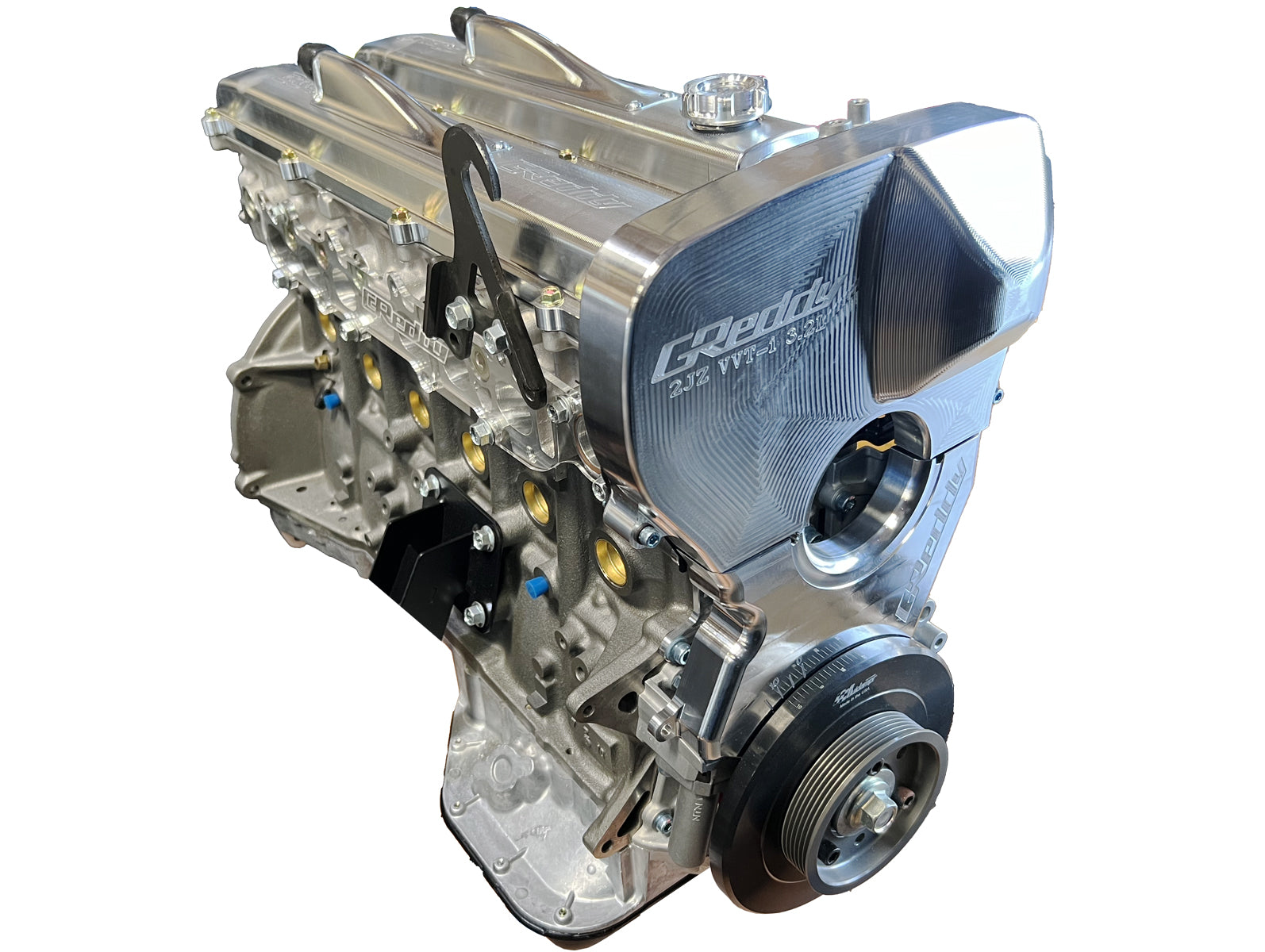

   Fully Machined and Assembled GReddy 2JZ (VVTI or non-VVTI) Long Block

• Displacement:                   3,175.5cc  (stock 2,998cc)
• Compression Ratio:          9.25:1        (stock 8.5:1)
• Bore:                                  86.15mm   (stock 86mm)
• Stroke:                               91.0mm     (stock 86mm)
• Max RPM:                         9500RPM  (stock 7,200 RPM)



GREDDY COMPLETE, BALANCED, BLUEPRINTED AND ASSEMBLED RB28 ENGINE

TOP END:   Greddy Performance Products 2JZ Cylinder Heads

• Brand New Toyota VVTI or non-VVTi Cylinder Heads
• GPP Head Modifications:

  • Fully CNC Ported Intake and Exhaust Ports
  • CNC machined combustion chamber
  •  Combustion / Port Volume matched to within 0.2% difference
• Camshaft: Billet G2, (Made in the USA)
• GPP precision Camshaft Clearance:

  • Head has been clearanced for high-lift camshafts
• GPP Cam Cap Hardware kit, (Made in the USA)

  • 304SS Hex Head studs and Chrome-moly nuts.

• Lifters: CNC valve lifters with DLC (Diamond Like Coating)

  • Inner Shim Design
• Valves: Intake and Exhaust

  • +1mm Intake Valves
  • +1mm. Inconel Exhaust Valves
• Valve Seats: Genuine OEM
• Valve Guides: Manganese Bronze

  • with high flow profile
• Valve Seals: Viton
• Valve Springs: GPP Single Conical Spring
• Retainers: Titanium Retainers
• Cam Sprockets: GReddy Adjustable Intake (non-VVTi) and Exhaust
• Timing Belt: GReddy High Performance Belt
• Head Gasket:Metal
• Head Bolts: ARP Custom Age 625 Headstuds
• Oiling Modifications:

  • Oil Restrictor modification installed
      (to maintain oil in block and decrease pooling in cylinder head)

BOTTOM END:   Greddy Performance Products 2JZ Engine Block

• Brand New Engine Block
• GPP precision Block Modifications:

  • Block deck resurfacing.
  • Coolant passage machining.
  • Head bolt hole chamfering.
  • NO BORE (to maintain maximum cylinder wall strength)

    • Only CNC Hone on cylinder walls
      (to achieve GPP spec: rpk, rk, rvk,
        and crosshatch angle for high RPM.)
• Piston: GPP HD Forged Pistons (Made in the USA)

  • Anodized and High Temp Ceramic Crown Coating
• Piston Rings: High Performance Ring Set
• Connecting Rod: GPP Billet X-Beam Design (Made in the USA)

  • 300M construction
  • with 7/16" ARP 2000 Rod Bolts
• Crankshaft: GPP Billet Full Counterweight. (Made in the USA)

  • Highspeed CNC balanced within 0.25 grams.
  • Coated with Teflon low friction LTC coating.
  • Journals are micro polished chemically and cured.
• Main Bearings: ACL Bearings (coated)

  • Each bearing is precision measured & checked
• Connecting Rod Bearings: ACL Bearings (coated)

  • Each bearing is precision measured & checked
• Upgraded Oil Pump: Nismo N1 pump housing

  • with Billet Oil Pump gears and DLC coating
• Line Honed to GPP spec
• Main Studs: ARP pro 2000 main studs.
• Rear Main Seal: Genuine OEM real main seal.

• Additional GPP Build Processes:

  • Fully assembled in clean room, temp control.
  • Honing performed with head plate on Rottlier CNC Hone Machine
  • Head Resurfaced to GPP spec for rpk, rk, rvk for excellent sealing
  • Valvetrain assembly performed with head plate to ensure flatness
  • GPP torque plate is used for CNC valve job and torque plate is also used to lash valve clearance.

_{* DLC-diamond like coating,  rpk -peak roughness, rk -core roughness, rvk -valley roughness}

+  Long Block Assembly Includes: Balanced and Blueprinted

• GReddy Billet Covers
  • IN/EX Valve Covers with -10AN Breather outlets
    * Billet Oil Filler Cap included

  • Upper Front Cover _{^{(* Cam Timing Sensor not included)}}
  • GReddy Billet Lower Timing Cover
• Fluidamper Crank Pulley with New Crank Bolt (installed)
• GReddy Adjustable Cam Gear(s) _^(IN/EX)
• GReddy Extreme Timing Belt  _^(blue)
• New Timing Belt Tensioner
• GReddy JIS 8 Spark Plugs (6)
• MetalHead Gasket:
• Coolant Thermostat
• New Genuine OEM Water Pump
• GReddy QX-03 Oil Filter
• Motul Break-In Engine Oil  _^(10W-40)
• GReddy 2JZ Engine Stand with Casters
• New Exhaust Studs

________________________________________________________________

*  Optional Parts, not Included but also available from GPP :

•  Coolant Barbs on the block, (as they differ for R32/ R33/ R34)

•  Water Neck located on engine block

•  Engine Oil Pickup Tube

•  Engine Oil Pan

•  GReddy Engine Oil Pan Extension
•  GReddy Engine Oil Dip stick and tube

•  Billet Bracket and hardware for Nissan R35 Ignition Coils.
    (No modification to coils is needed)

•  PRP RB sensors and/or coil packs
•  Any other items not listed are not included
•  for more 2JZ / Supra products please see: (greddy.com)

_{"For Competiton Only" Kit - requires a (custom/aftermarket) fuel enrichment or fuel system solution.}
