SKU: SKU: MLR563406

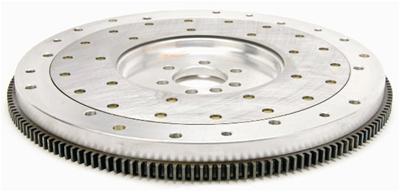

Flywheel: Aluminum: Ford: 1996-10: 4.6L: 6 Bolt Crank: 164T: 15 Lbs
Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.
| Flywheel Material | Billet aluminum |
| Marine Use | No |
| Replaceable Friction Surface | Yes |
| Engine Balance | Internal |
| Quantity | Sold individually. |
| Ring Gear Tooth Quantity | 164-tooth |
| SFI 1.1 Approved | Yes |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Disc Diameter (in.) | 10.500/11.000 in. |
| Pressure Plate Style | Diaphragm |
| Weight | 15.000 lbs. |
Note: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
