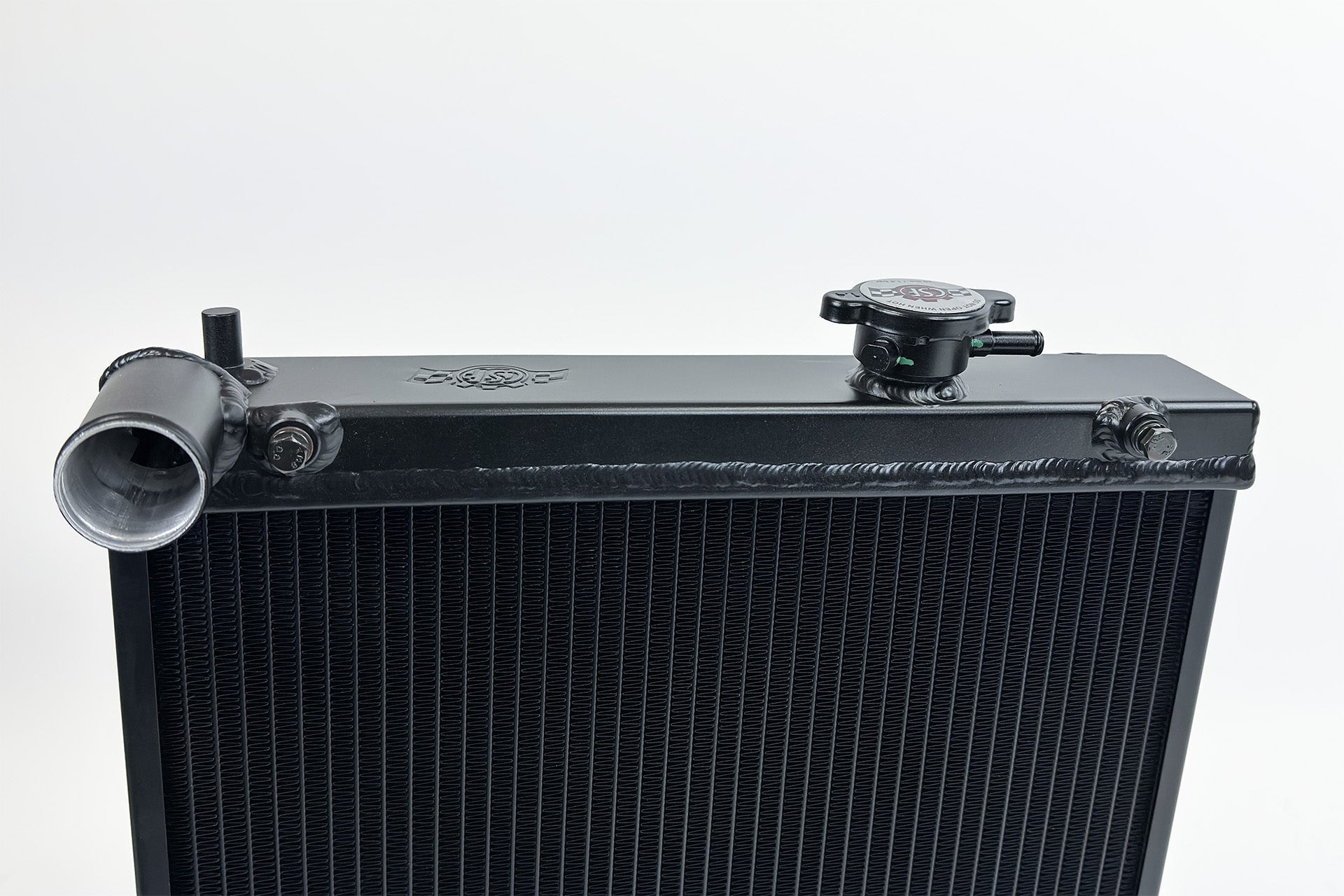

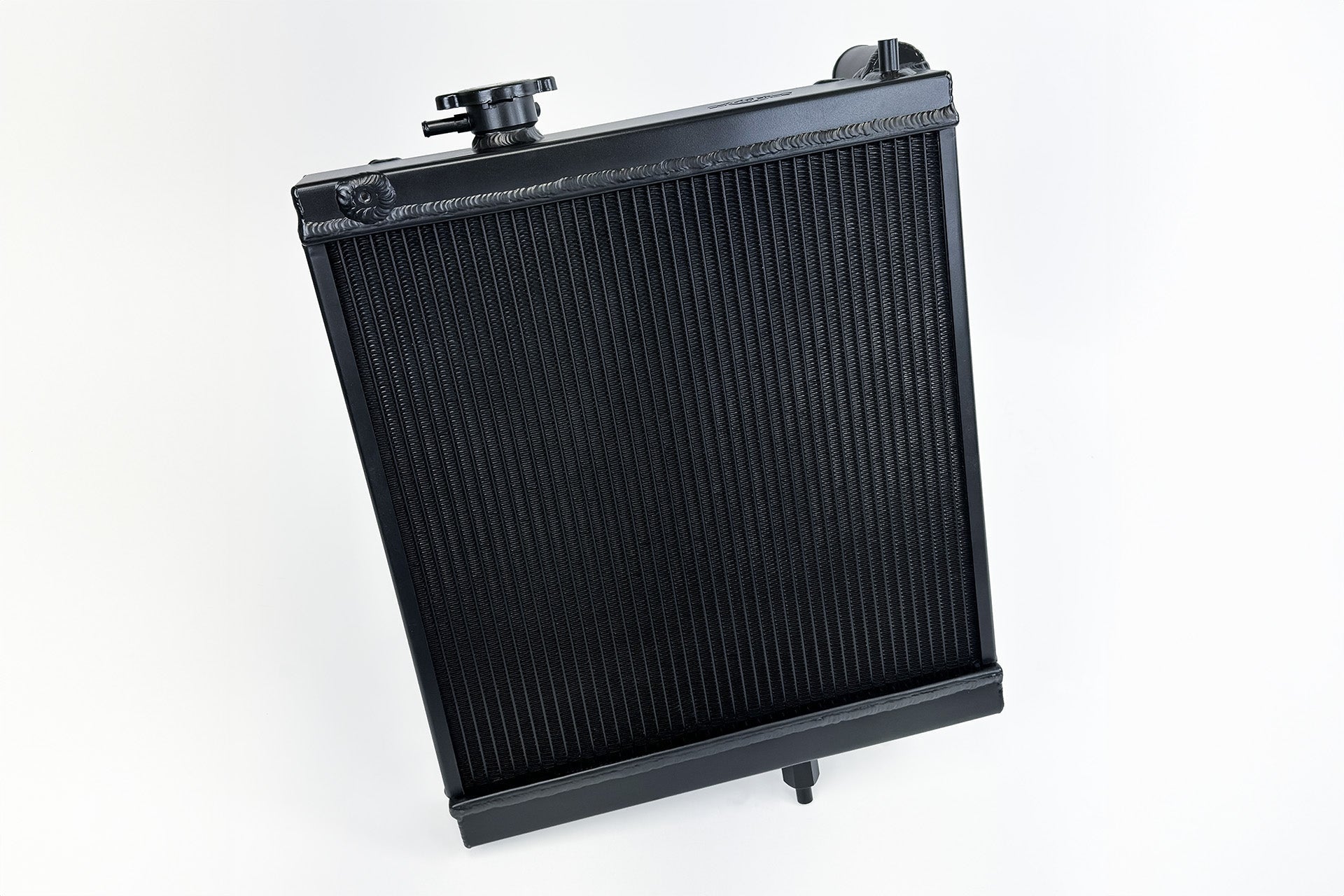

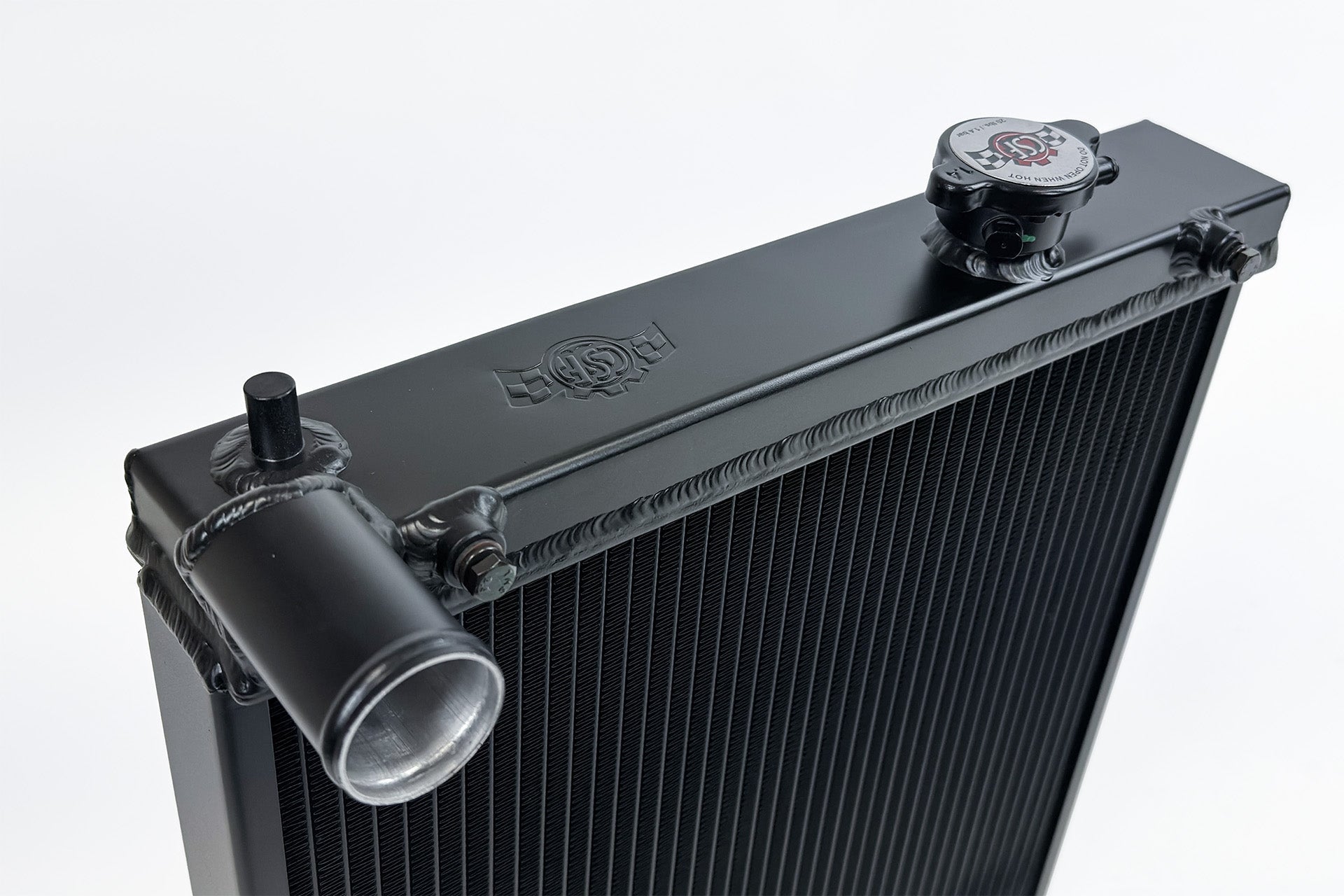

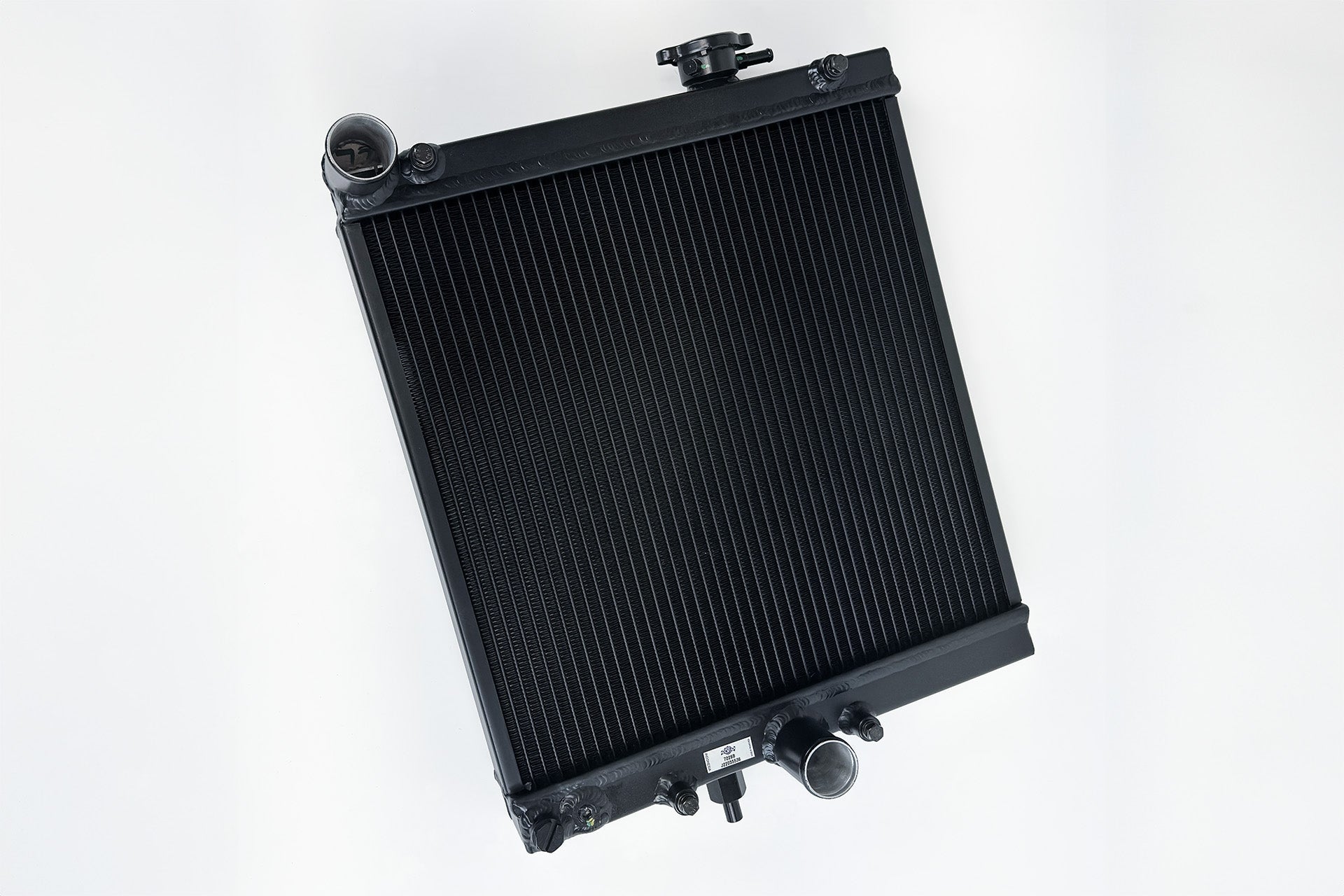

CSF 03-07 Mitsubishi Lancer EVO 7/8/9 1/2 Size Radiator - Black - 7228B

Click Here for the Full Press Release

Many Evo 7, 8, and 9 owners have relied upon CSF Radiators to keep their high horsepower DSMs cool for years. The Ultimate Half Radiator (CSF #2858X/2858XB) is one of CSF's most popular universal radiators, and has become over the years the "Go-To" option for Evo owners running large turbos with forward facing manifolds that won't fit with a full size radiator. The demand for those half radiators has been so high that Turn 14 Distribution asked CSF to design a half rad specifically for the Evo 7, 8, and 9.

This new radiator enters the market at a lower price point meant to be a more economical solution for the cost conscious customer compared to the more feature-rich kit of the CSF #2858X/2858XB. With that being said, CSF's new Evo half rad has a full suite of new and innovative features incorporated into the design, more than any other competitor with a similar product on the market. CSF is pleased to introduce the new Evo 7-9 High-Performance All-Aluminum Half Radiator. Exclusively available from Turn 14 Distribution and their dealer network.

The Evo's 4G63 loves a big turbo. However, these turbos add a lot of extra heat to the system. Therefore, CSF designed the new half radiator to offer the best cooling performance in a compact design. The new radiator shares the same 2-Row 42mm High-Performance core that has been race proven on countless Evos running the Ultimate Half Radiator (CSF #2858X/2858XB). CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. This Half Radiator is also compatible with the CSF 12-inch high performance SPAL fan and shroud kit. This can be added-on or purchased separately at any time (CSF #2858F / #2858FB).

Features

• Provides Clearance for Forward Facing and Twin-Scroll Turbocharger Setups
• 2-Row - 42mm Ultra-High-Performance Core
• 40 Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Boss and Elevated Mounting Pin
• Adjustable Mounting Bracket and Plug System for the Top of the Tank
• 2-Way Adjustable Breather Pipe
• OEM Style "Slip-on" Hose Connections

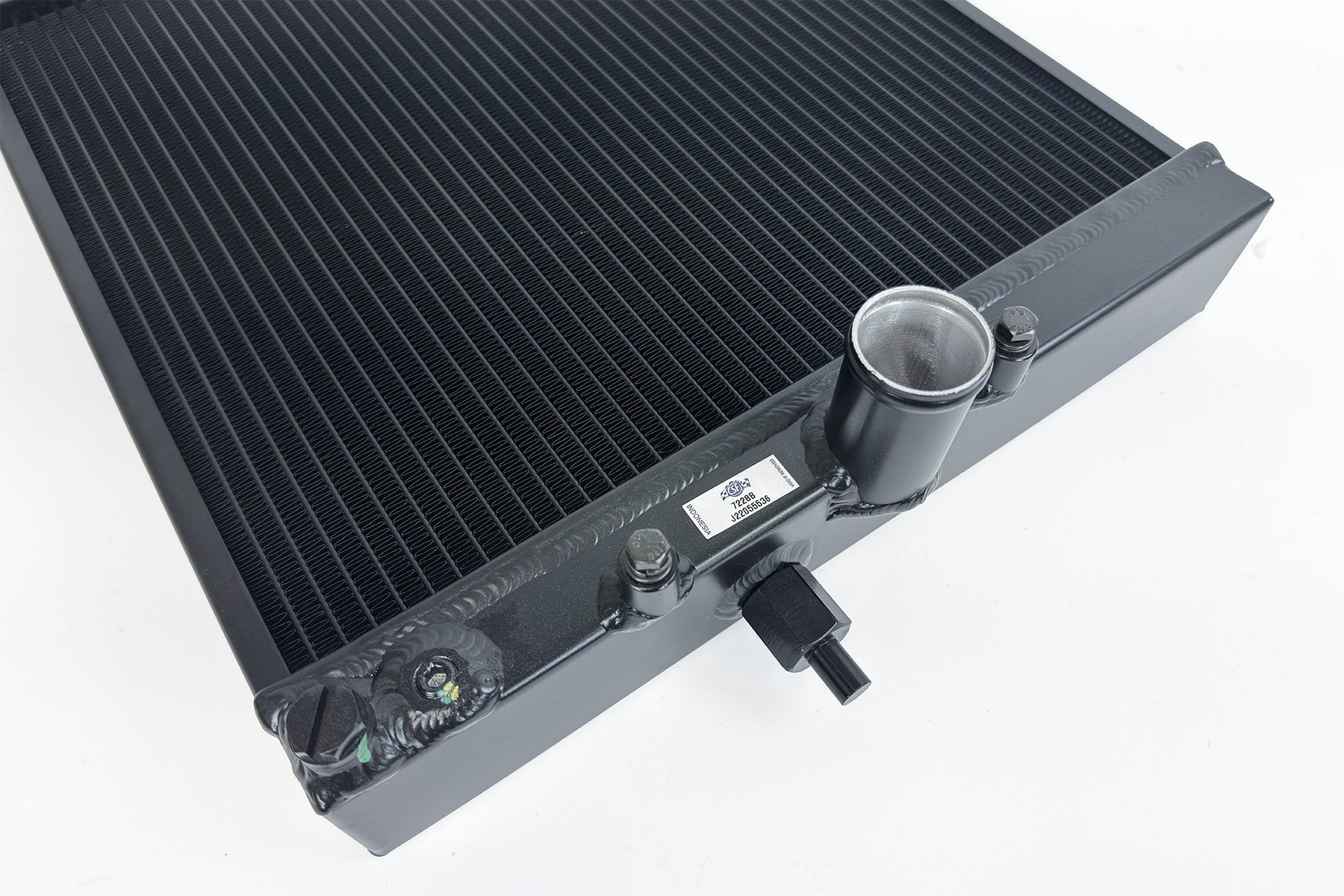

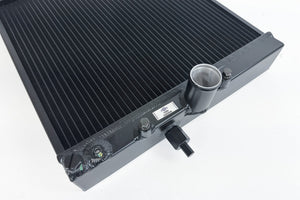

• 1/8th NPT Temp Sensor Port on Bottom End Tank (Plug Included)
• 100% All Aluminum TIG-Welded Construction

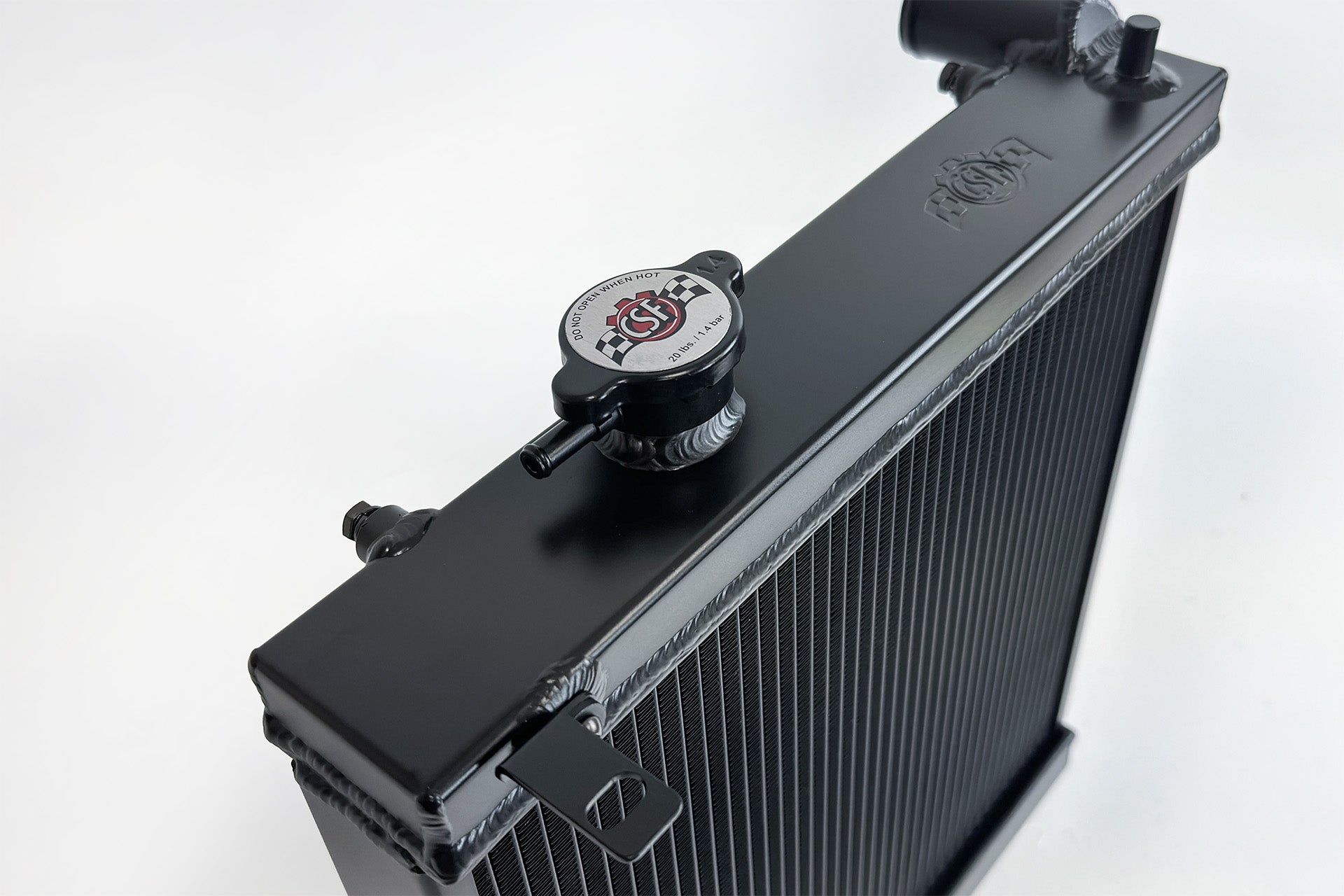

• 1.4 Bar (20psi) High Pressure Radiator Cap with CSF logo
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Fitment Note: Will not work with Factory or Factory style over radiator intake ducts.

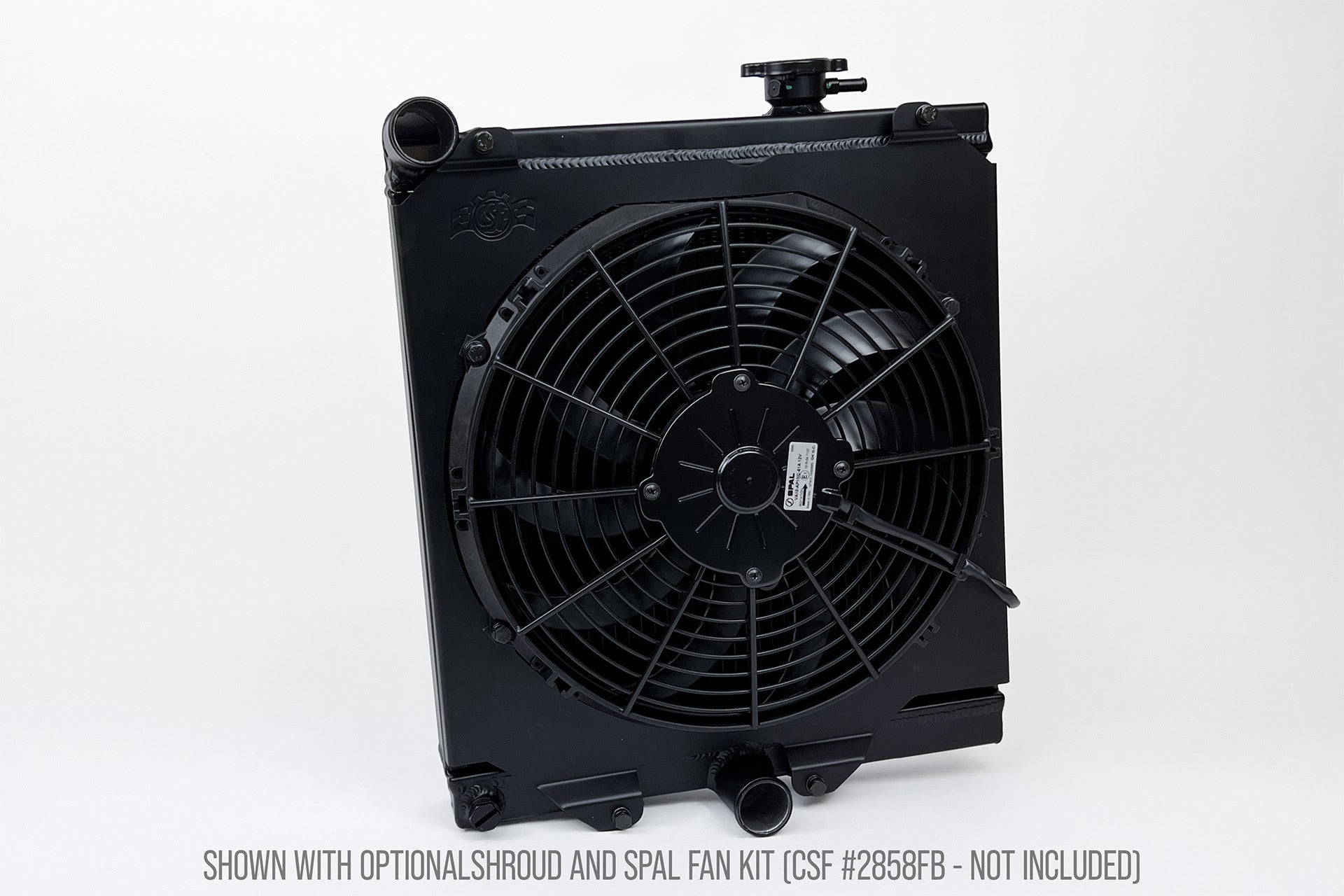

• Compatible with the CSF 12-inch SPAL fan and shroud kit (CSF #2858F / #2858FB)
• Individually Leak and Pressure Tested
• Satin Black Finish for OEM+ Look
• 2-Year Warranty

Applications

OEM Part Numbers

• Mitsubishi: MR464612
• Mitsubishi: MZ690911

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page

SKU# 7228B Warranty Term: CSF does not set Warranty Policies for Private Label or Exclusive Parts. Please see the vendor's website for warranty information if not included in the description or features.
