SKU: SKU: BAJ820001

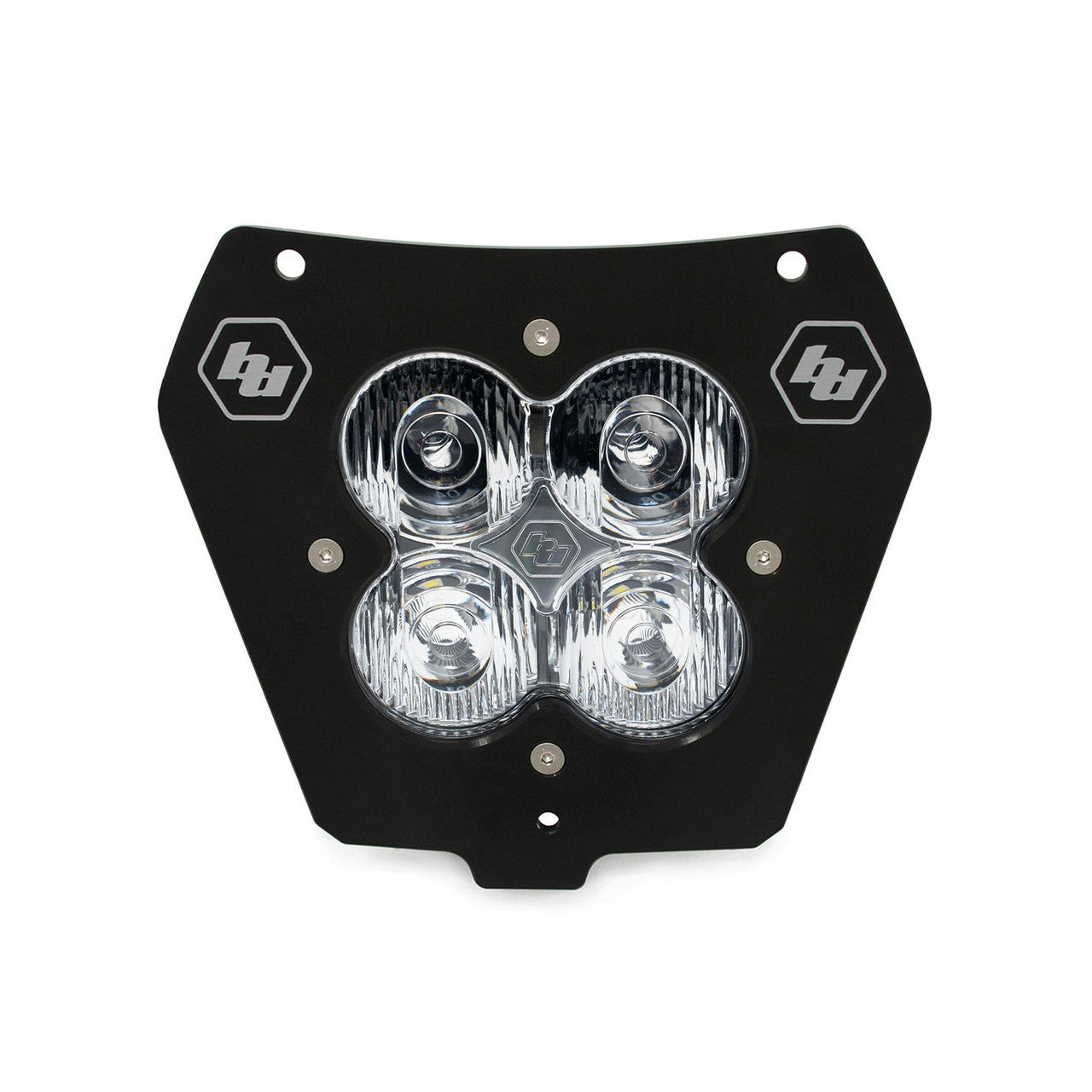

Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit — purpose-built for 2013–2016 KTM motorcycles. Inspired by the performance of the XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. Engineered for dirt bikes with lower-output OEM stators, it draws just 43.5W — a powerful upgrade for riders who previously lacked a compatible premium option.
| Product Type | XL40 |
| Overvoltage Protection | Built-In |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Mounting Hardware Material | Stainless Steel |
| Universal or Specific | Universal |
| Wiring Harness Included | No |
| Wattage (W) | 43.5 |
| Housing Material | Powder Coated Cast Aluminum |
| Housing Color | Black |
| Brightness (Lumens) | 5,224 (Hi) / 1,435 (Low) |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Trail |
| Average Rated Life (hr.) | 49930 |
| Amperage Rating (A) | 3.4 |
| Effective Lighting Score (ELS) | High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435 |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Weight (lbs.) | 2.45 |
| Length (in.) | 4.43 |
| Height (in.) | 4.43 |
| Depth (in.) | 3.65 |
