HKS Intercooler VAB EJ20 - 13001-AF015

HKS Intercooler VAB EJ20

Achieves excellent cooling performance despite the factory layout.

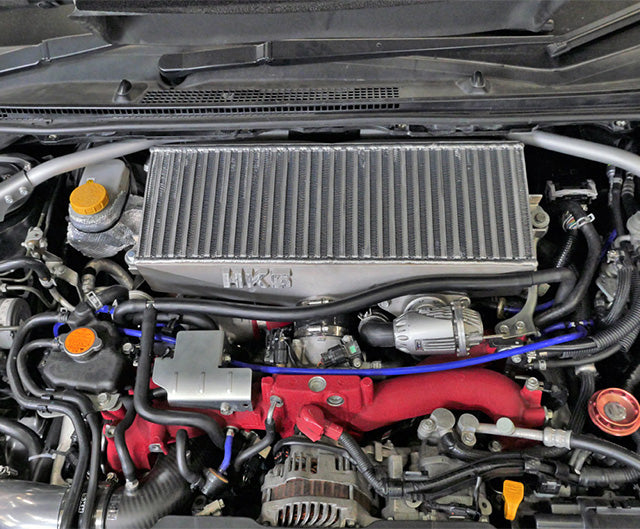

Complete bolt-on design of genuine layout

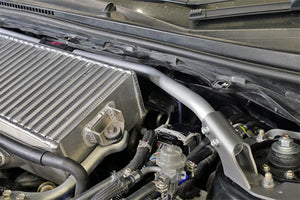

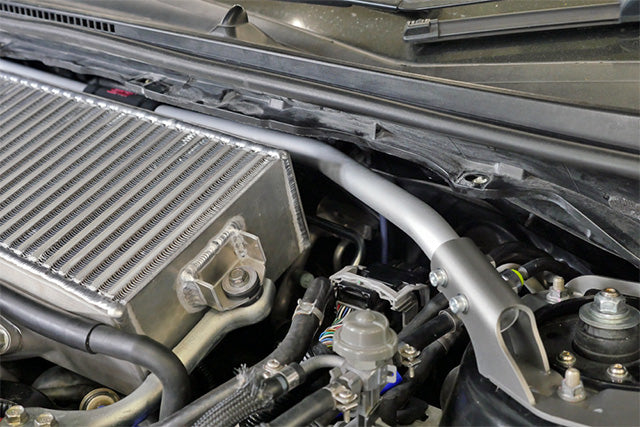

Compatible with STI flexible tower bar

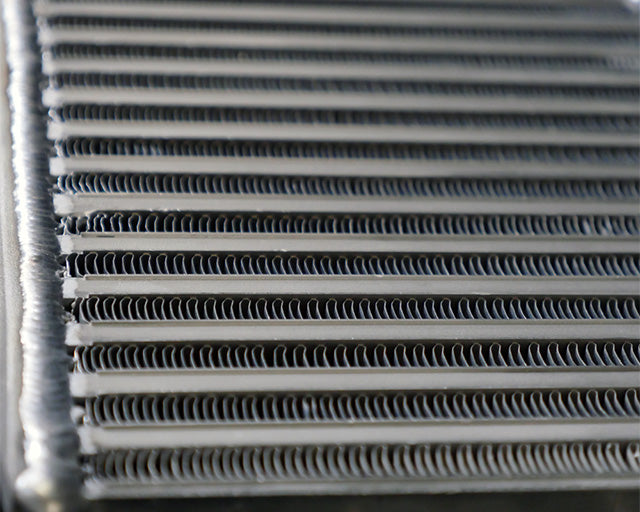

Low pressure loss, highly efficient laminated core

■ Features

• Completely bolt-on design. No modification to the vehicle body is required and the largest core size is used.
• The core size is 15mm wider and 30mm thicker than the original, but by adopting a new laminated type core, we have achieved both low pressure loss and high cooling efficiency.
• At 5500 rpm, the intake air temperature is reduced by 15°C and the cooling efficiency is increased by 15%, and the intake air temperature is reduced by 20°C and the cooling efficiency is increased by 20%. (In-house testing)

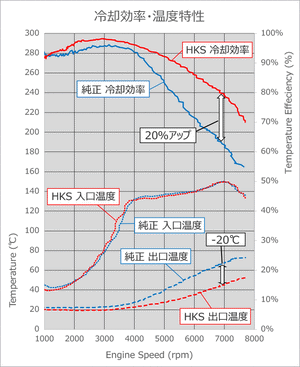

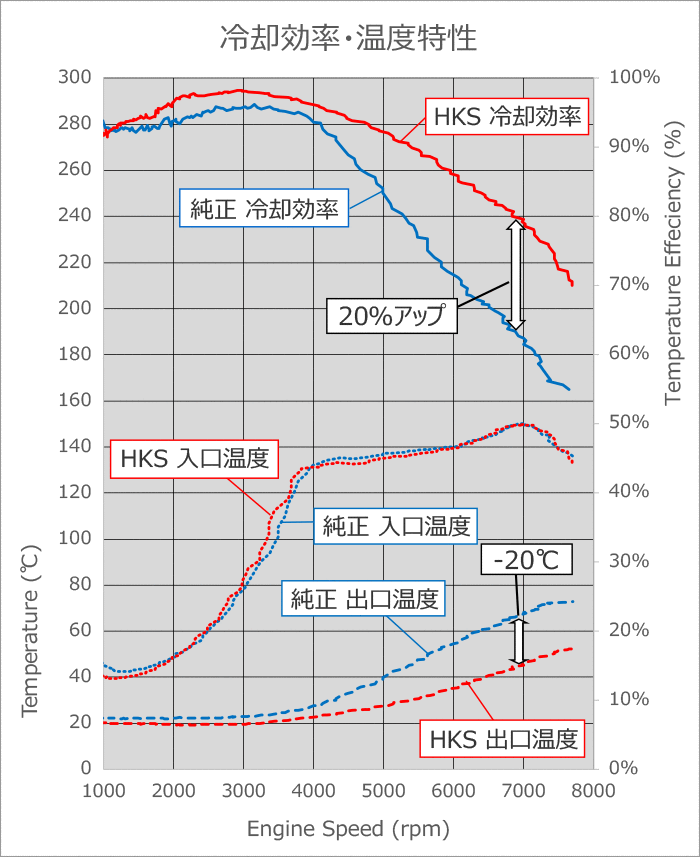

■ Performance

*Internal data

Cooling efficiency is improved by up to 20%, and the intake temperature can be reduced by up to approximately 20°C.

[Test vehicle specifications]

Normal turbine, racing suction, metal catalyzer,
super turbo muffler, flash editor (BBi-tune data)

Car model	Model	engine	Model year	type	Core size/mm・Installation position	type	Code No.	Retail price (excluding tax)	operating instructions	remarks
WRX STI	VAB	EJ20	14/08 -20/04	Laminated Type	540×180×100・OEM replacement	Laminated Type	13001-AF015	¥217,800 (¥198,000)		STI flexible tower bar can be installed. Kit-specific inlet pipe included.
