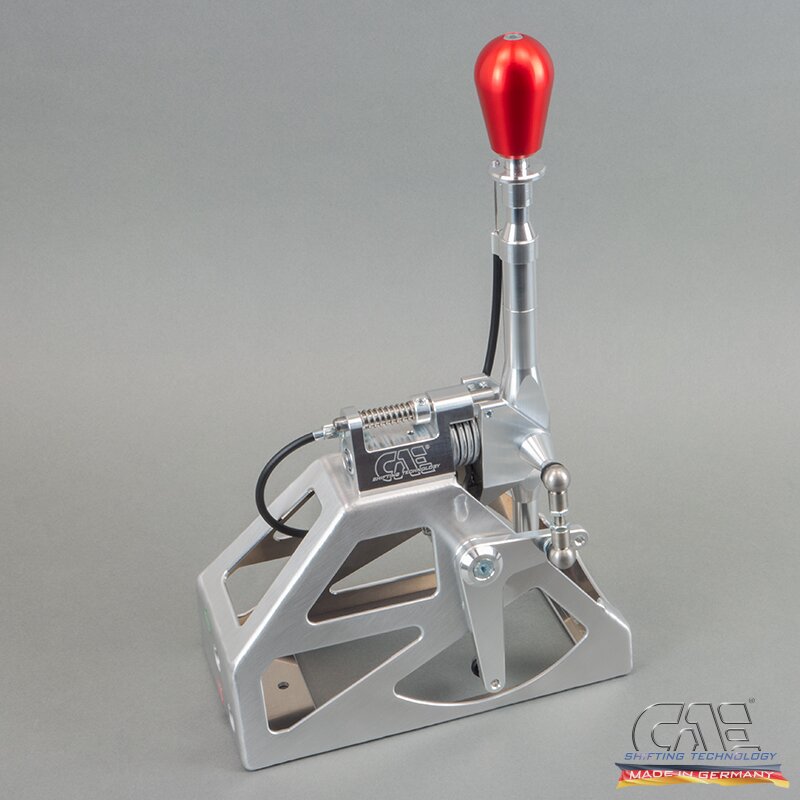

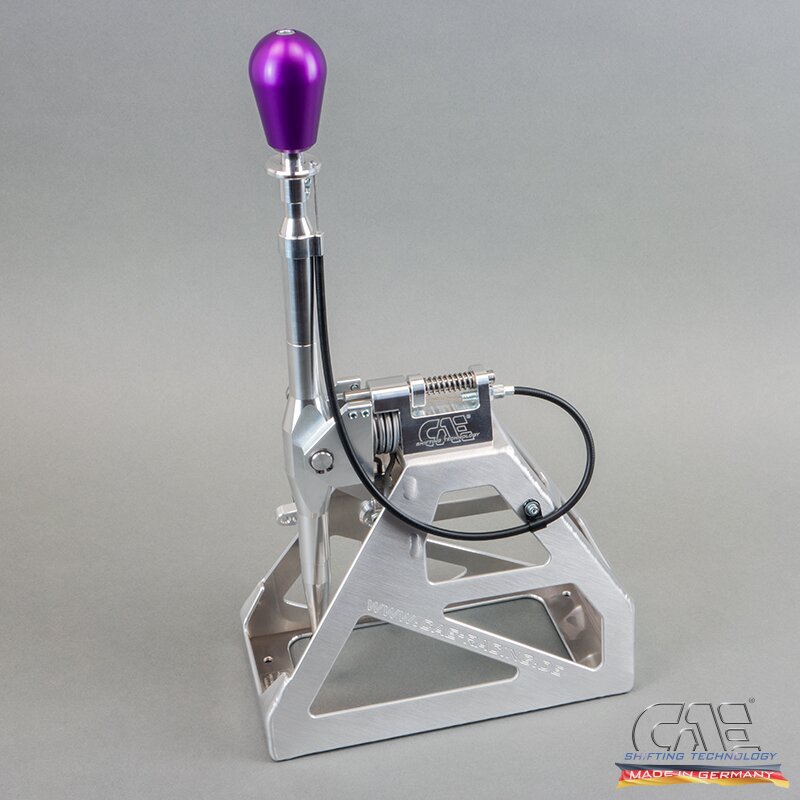

CAE Ultra Shifter VW Corrado 02A

CAE Ultra Shifter - optimized for motorsport, with the following features:

• CAE Ultra Shifter for vehicles with a VW 02A cable-shift gearbox.
• Short and ultra-precise shift throws H-pattern and for 5- and 6--speed gearbox compatible.
• The clutch system remains stock.

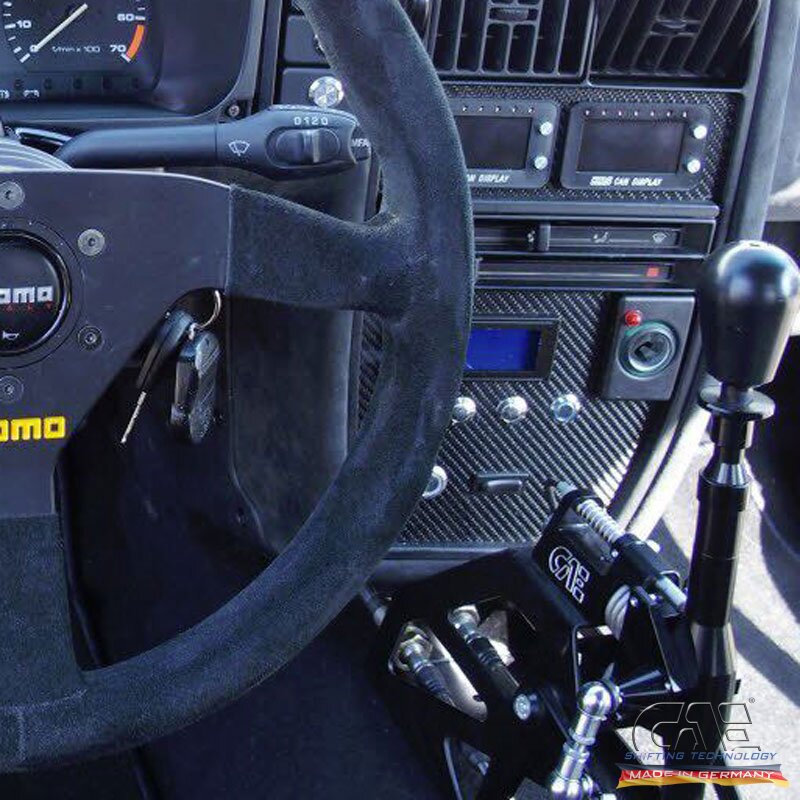

• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.
• Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet, joined by TIG welding and brushed to a clean finish.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.
• Easy installation with a complete conversion kit; delivery includes all small parts, fasteners, and a detailed installation manual.

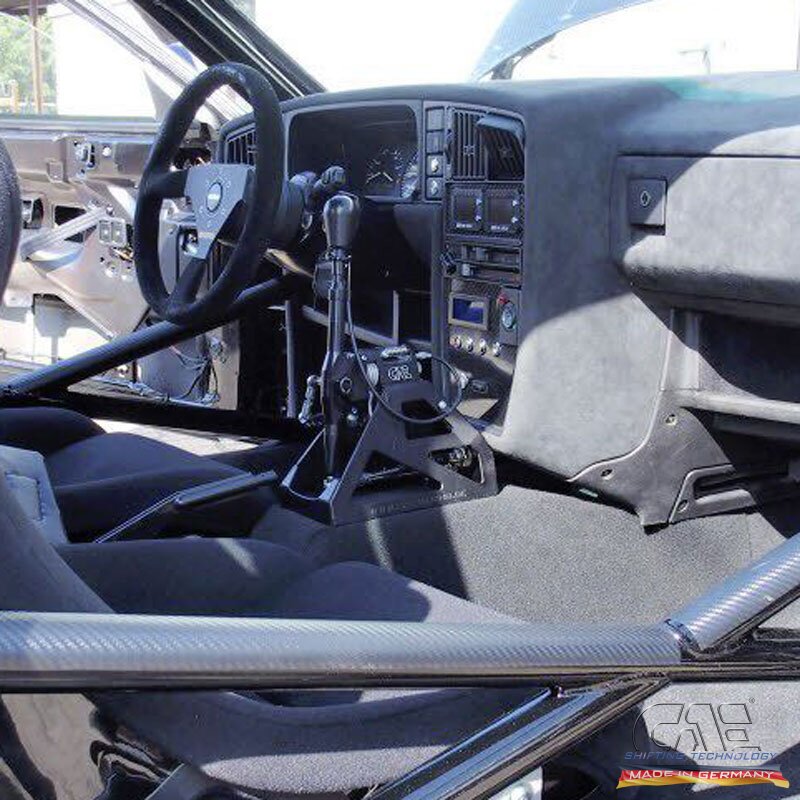

• The shifter is designed for vehicles without interior trim / without a center console and uses the mounting points of the original gear lever.

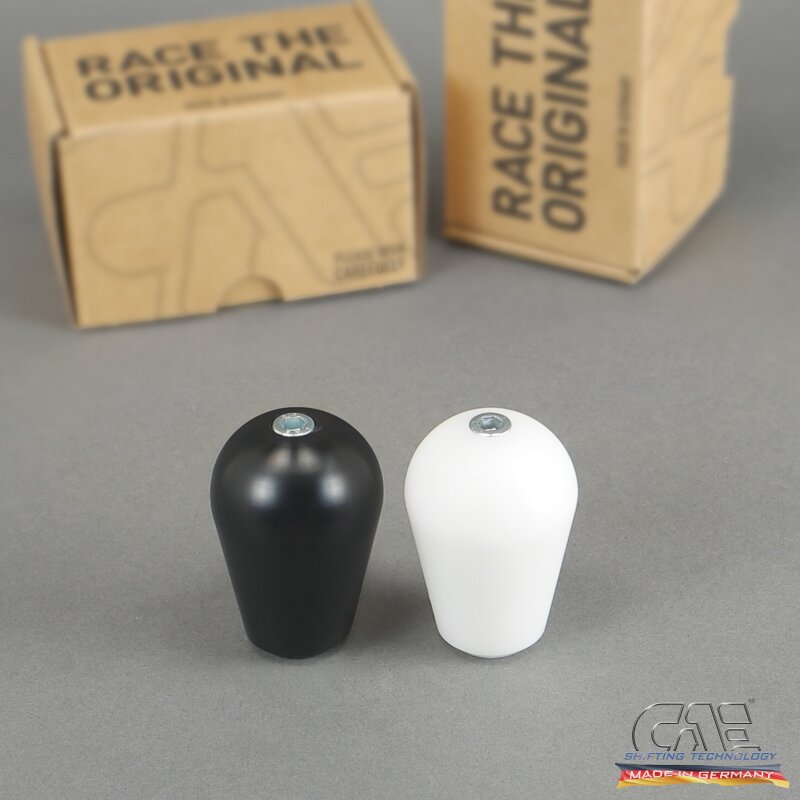

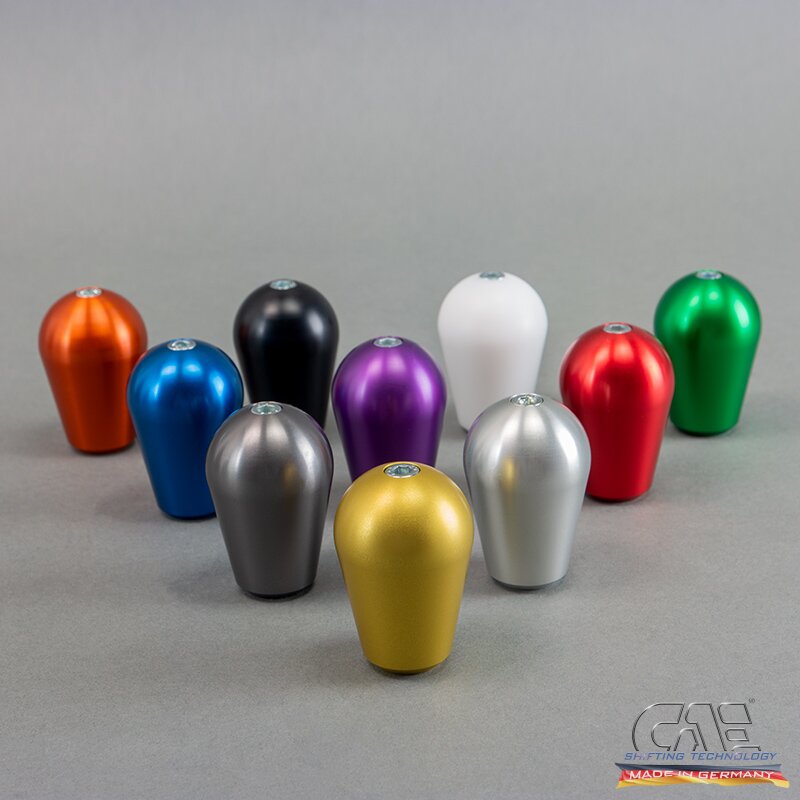

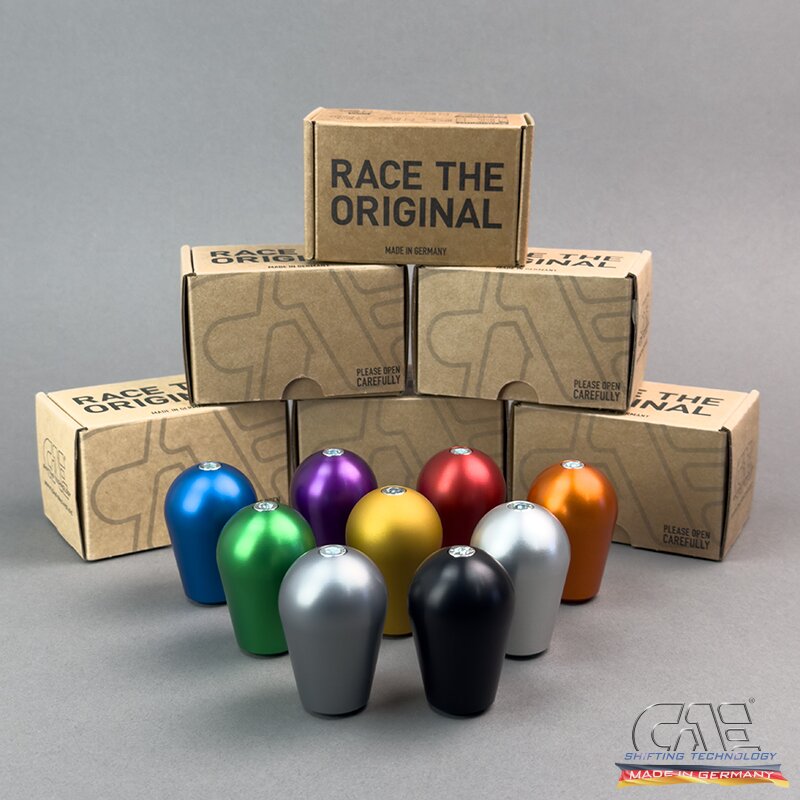

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

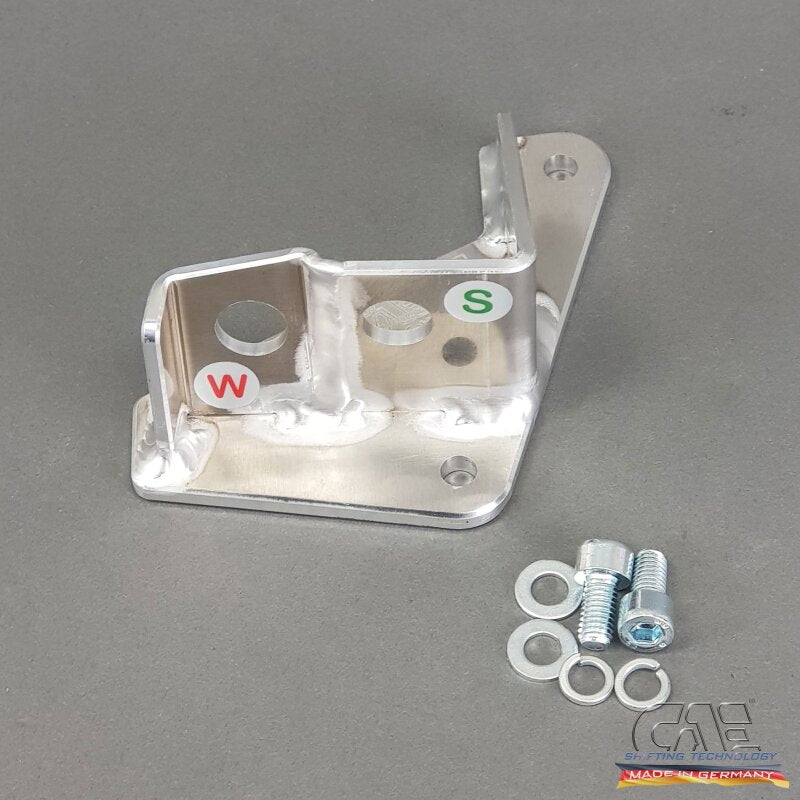

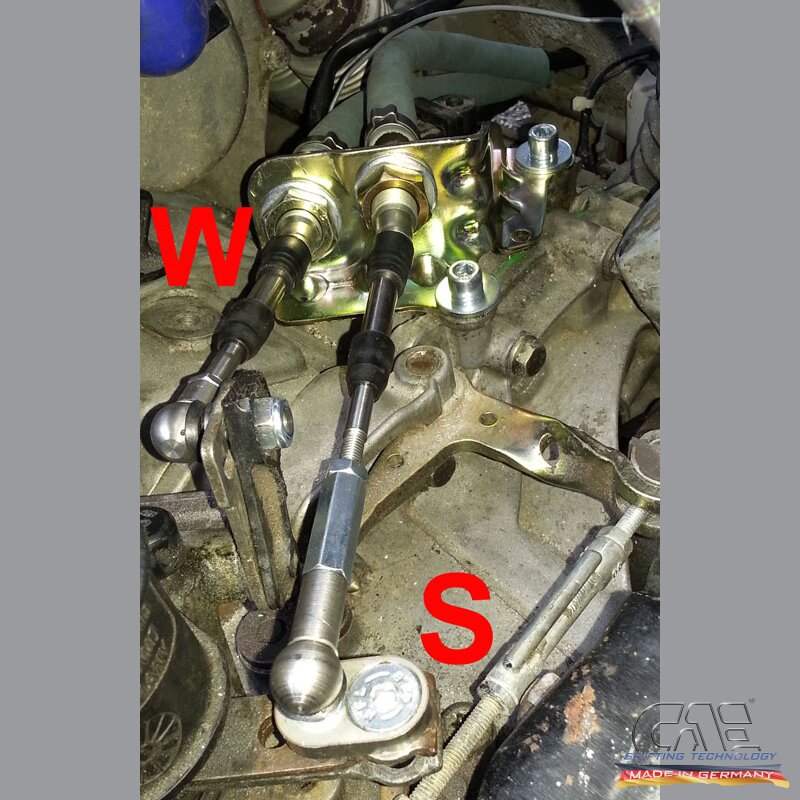

After conversion, the shift cables run over the tunnel. One hole in the tunnel is required for routing. The shifter is supplied as a complete kit including CAE HD shift cables. Optimally matched for 2A gearbox where the shift cables side by side at the gearbox arrive. 02A gearbox where the cables one above the other liegen must on the andere Version be retrofitted! The compatible gearbox-cable bracket (10113WID) are available under "Accessories" (see below).

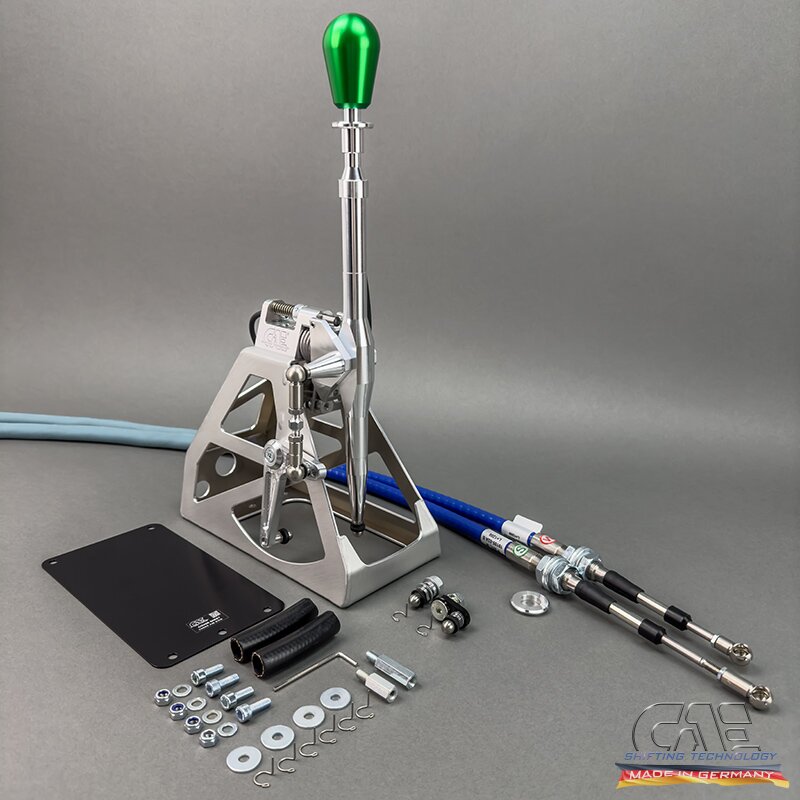

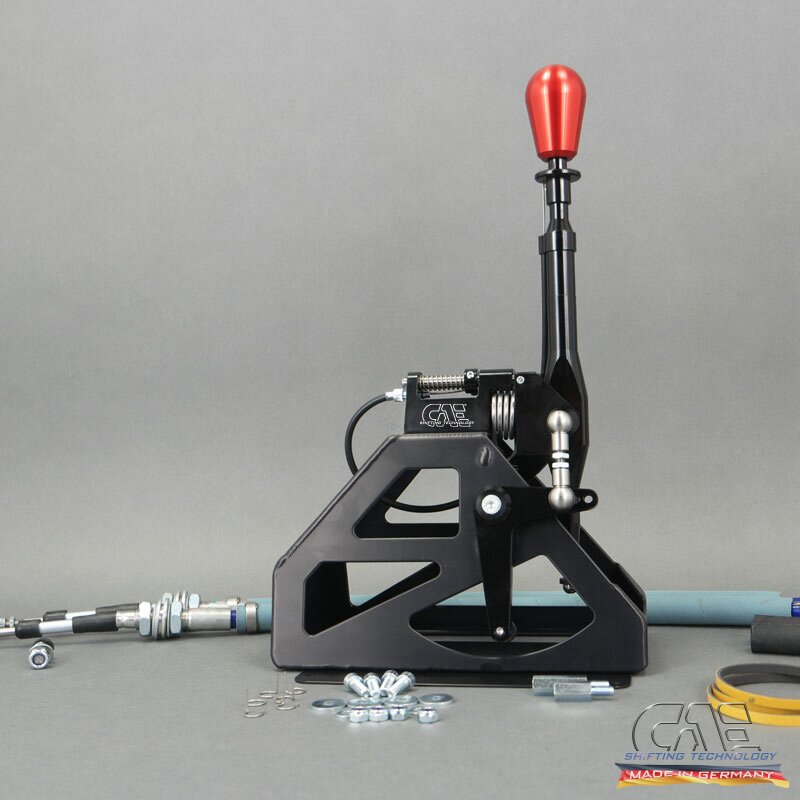

Scope of delivery: Shifter fully assembled, cover plate for tunnel opening, CAE HD shift cables, all small parts and fasteners, installation manual.
